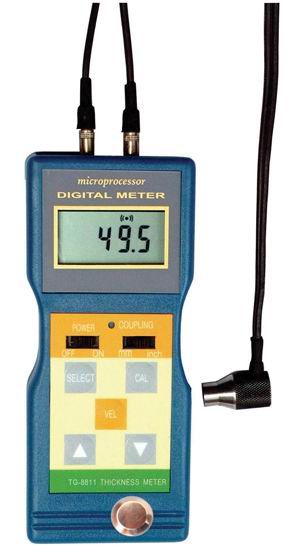

TG8811 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

Measuring range (metric/imperial): 1.5-200mm,0.06-8inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 160x68x32mm

Weight: 208g (not including battery)



Main unit                                1
5M Φ10 Transducer               1
Couplant                                1
Carrying case                         1
Instruction manual                 1



1. 6M Φ6mm thin material probe:

 measuring range (steel): 1-50mm    Operating temperature:-10-+60℃

2. 5M Φ12mm high temperature probe:

 measuring range (steel):4-100mm  Operating temperature:-10-+300℃
