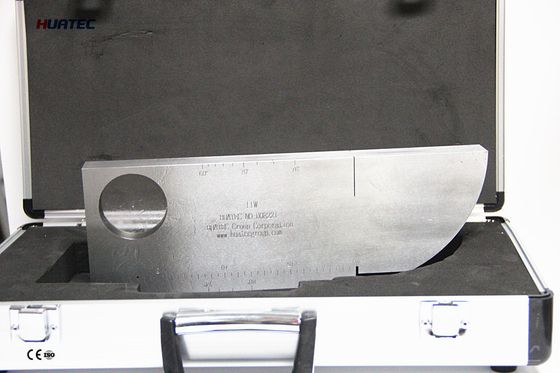

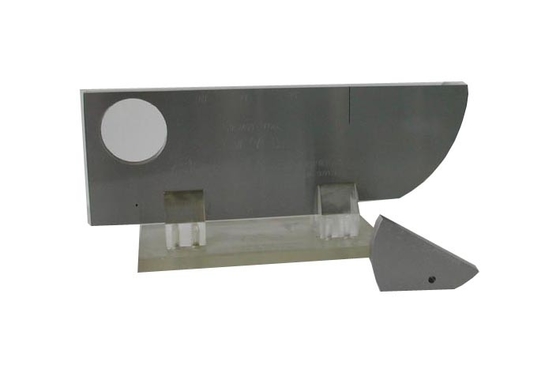

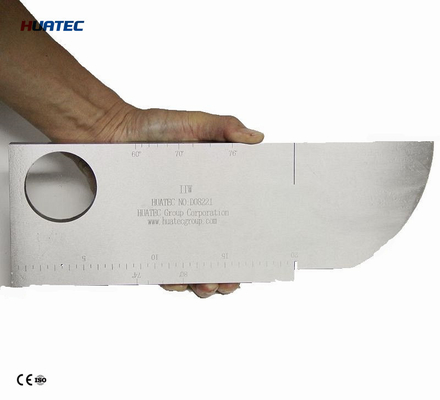

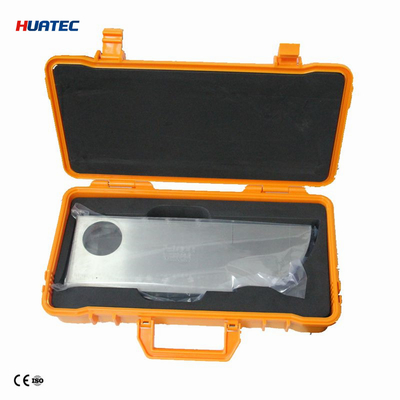

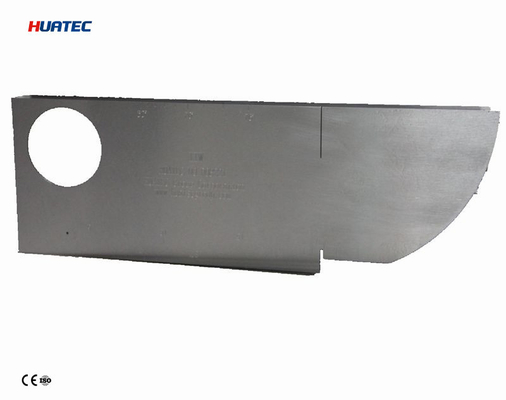

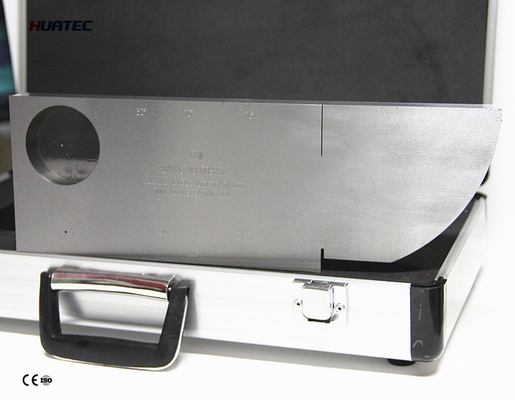

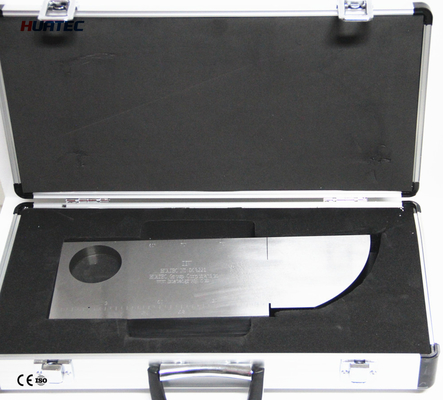

Ultrasonic Flaw Detector Calibration Blocks Test Blocks UT Blocks Standard Test Blocks IIW

Name: Ultrasonic Flaw Detector Calibration Blocks Test Blocks UT Blocks Standard Test Blocks IIW
Brand: HUATEC
SKU: IIW V1
Price: 1 USD
Availability: InStock
Rating: 4.6 (110 reviews)
ISBN: 11532913

Large Image : Ultrasonic Flaw Detector Calibration Blocks Test Blocks UT Blocks Standard Test Blocks IIW

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	IIW V1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Material:

Aluminum 7075

High Light:

digital ultrasonic flaw detector

ultrasonic flaw detection

ultrasonic test block,Calibration Blocks, Test Blocks, A2 UT Blocks, standard test blocks iiw,BS2704

Standard ISO2400-1972 ISO2400 2012

Calibration Blocks/Standard Test Blocks/ UT Blocks

Order Code	Shape (Not to Scale)	Type	Description /Application	Standard Made To	Material Size
V1		A2 (BS) IIW V-1	I.I.W Calibration Standard. Calibration of Shear and compression wave probes. Checking beam angle, emergent point and resolution. Calibration of time base and gain settings.	B.S. 2704 DIN 54120 IIW (International Institute of Welding) ISO2400 2012 ISO2400-1972	Steel 25x100x300mm
V1/50		A2 (BS) IIW V2	Generally as V1. Thicker block minimises side wall echoes.	BS 2704	Steel 50x100x300mm
V2 (Specify hole diameter)		A4 (BS)	Small calibration block for site checking of shear wave probes, time base and gain. 1.5mm or 5mm diameter hole target	BS 2704 IOW (Institute of Welding) ISO7963	Steel 12.5x43x75mm
V2/20 (Specify hole diameter)		A4 (BS)	Generally as V2. Thicker block eliminates side wall echoes. 1.5mm or 5mm diameter hole target.	BS 2704 ISO7963	Steel 20x43x75mm
BCB		A5 (BS)	Beam Calibration Block. Beam profile and resolution checks for shear wave probes. Sensitivity checks for shear and compression probes. 9 off 1.5mm holes.	BS 2704	Steel 50x75x305mm
A6		A6 (BS)	Evaluating dominant frequency, pulse, length, dead zone and resolving power for shear and compression probes as BS4331 part 3, 1974.	BS 2704	Steel 25x50x150mm
RTB		A7 (BS)	Checking shear wave probe resolution as BS4331 part 3, 1974. Steps of 2, 3, 4 and 5mm.	BS 2704	Steel 74mm radius 75mm thick
LSW		SPECIAL	Ladder step wedge for timebase calibration with thickness measuring compression probes. 8 steps from 1mm to 8mm.	Tolerance of +0.000mm- -0.040mm	Steel 8x15x120mm
LSW/M		SPECIAL	Generally as LSW with 15mm diameter steel inserts mounted in plastic. 8 steps from 1mm to 8mm.	Tolerance of +0.000mm- -0.040mm	Steel inserts Plastic body 10x20x140mm
CSW		SPECIAL	Curved Step wedge for timebase calibration of thickness measuring probes. 5 steps - 2, 4, 6, 8 and 10mm.	Tolerance of +0.000mm- -0.040mm	Steel 100mm long x 30mm I.D. Quadrant
MU		SPECIAL	Metric Universal Block for general purpose checking as V1 block.	Tolerance of 0.1mm	Steel 20x50x150mm
TBR 2 125 (3)		SPECIAL	Radiused test block for calibration of boiler probes. 3 off 1.5mm holes.	Tolerance of 0.004 inch	Steel 20x25x165mm
TBR 2 125 (5)		SPECIAL	As TBR 2 125(3) - supplied with 5 off 1.5mm holes	Tolerance of 0.004 inch	Steel 20x25x165mm
A5 Blank Type B		ESI	Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.	ESI 98-7	Steel 50x75x305mm
A5 Blank Type C		ESI	Determination of signal curve and beam characteristics of single crystal probes (longer range). 1.6mm diameter hole.	ESI 98-7	Steel 50x75x305mm
ESI-BCB N-A5		ESI	Checking twin crystal probes for sensitivity. Contains four additional 1.5mm diameter holes to A5 block.	ESI 98-2	Steel 50x75x305mm
50 RAD		ESI	Checking pulse shape of shear wave probes.	ESI 98-2 and ESI 98-8	Steel 50x75x150mm
ASME (Specify Thickness)		ASME	Setting sensitivity levels for weld testing. Sizes and locations of flaws are dependent on weld thickness.	ASME Article 5 Fig T-546.1	Steel Size dependent on weld thickness
ASME/M (Specify Thickness)		SPECIAL (ASME)	Metric equivalent of ASME block.	Tolerance of 0.1mm	Steel Size dependent on weld thickness
DAC (Specify Thickness)		SPECIAL	Setting DAC characteristics for shear wave and compression wave probes. Flaws typically 1.5mm diameter holes at 20%, 40%, 60% and 80% of thickness.	Tolerance of 0.0004 inch	Steel Size dependent on product thickness

IIW V1, IIW V2, DAC, ASME, DC BLOCK, SC BLOCK, DSC BLOCK, 4 STEP BLOCK, 5 STEP BLOCK, MAB MINIATURE ANGLEBEAM BALIBRATION BLOCK, IOW BEAM PROFILE BLOCK, AWS RESOLUTION BLOCK, MINIATURE RESOLUTION BLOCK, 30 FBH RESOLUTION BLOCK, ASTM DISTANCE AREA AMPLITURE SET, ASTM SINGLE BLOCK, ULTRASONIC CALIBRATION BLOCKS, ULTRASONIC REFERENCE STANDARD, 2 NOTCH TUBE STANDARD, 2 NOTCH PIPE STANDARD, API REFERENCE STANDARD, LONGITUDINAL WAVE WEDGE, CERCUMFERENTIAL SHEAR WAVE WEDGE, EDDY CURRENT CALIBRATION STANDARD, MAGNETIC PARTICLE STANDARD, ASTM E709 MIL STD 271F, LIQUID PENETRANT STANDARD, IIW TYPE 1 BLOCK, IIW TYPE 2 BLOCK, ASTM E317, ASTM E1158, BASIC NOTCH SHAPES, HOLES, FLAT BOTTOM HOLE, ULTRASONIC TEST BLOCK,
