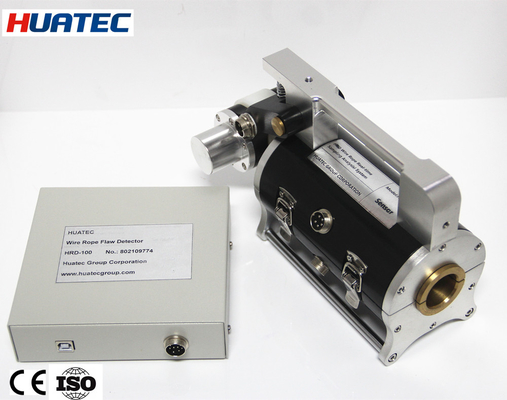

Magnetic Rope Detector HRD-100 Steel Rope Ultrasonic Flaw Detector

Mining rope detector,steel rope flaw detector

Specification

• For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")
• Size 330 x 235 x 190 mm (13" x 9, 3" x 7, 5 ")
• Weight 15 kg (33 lbs)
• Speed along the rope during inspection - from 0 to 6 m/s (0 to 6, 54 yards/s)

Features

• Dual-function: LMA and LF capability
• Speed does not affect readings

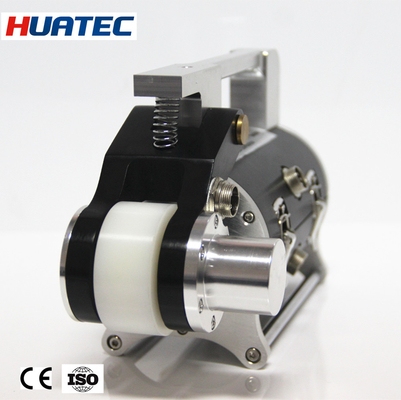

• Accurate distance wheel assembly
• Easy to install and re-install
• Easy to handle and fix on the rope

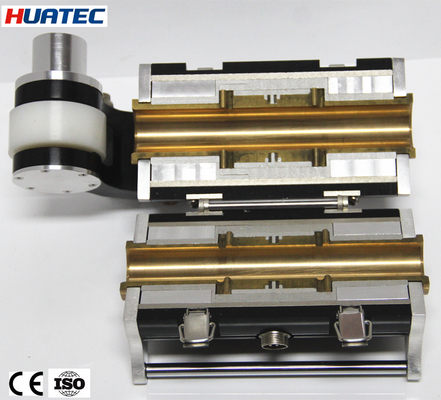

• 3 changeable hall sensor units
• Temperature range -10 +50°C
• PC software control directly, continuously testing rope length more than 10000m
• Power: AC 220V±10％
• Working temperature: -20℃～40℃
• Storage temperature: -40℃～60℃
• Relative humidity:≤90％RH

Typical applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

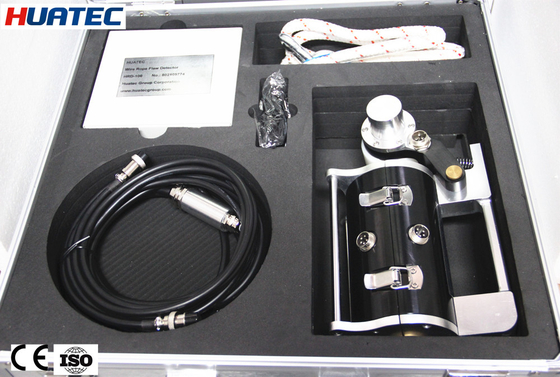

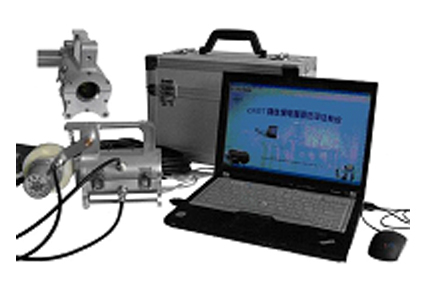

Standard accessories

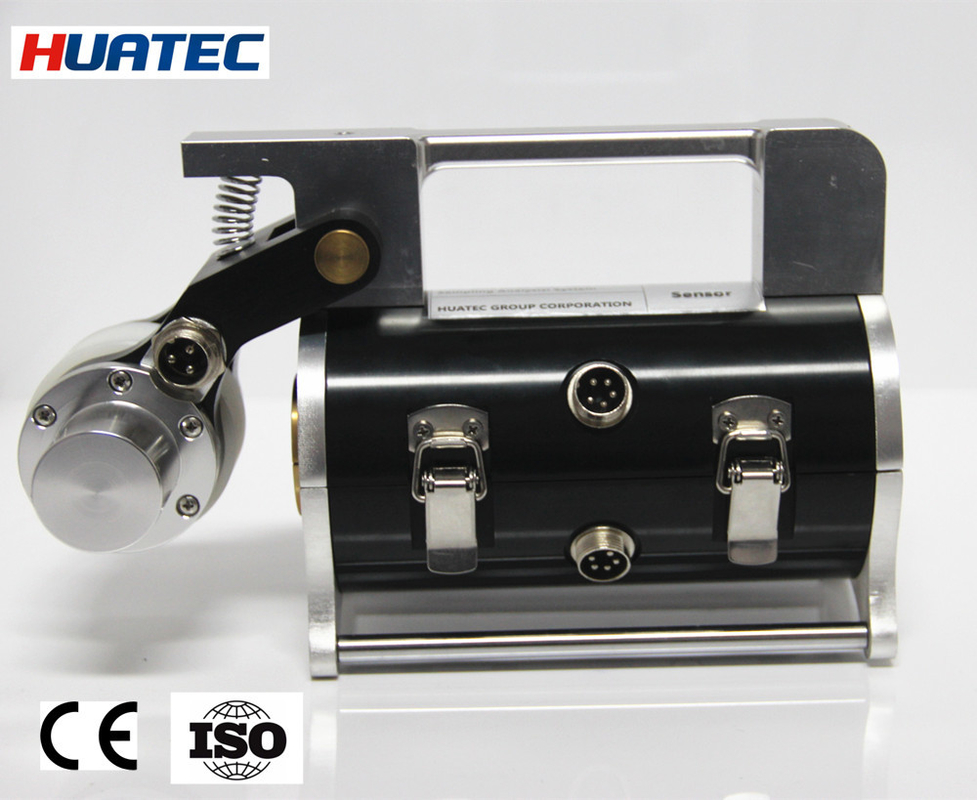

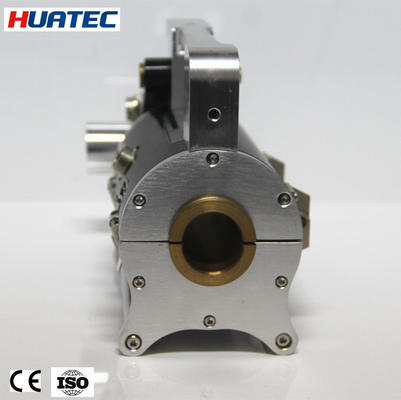

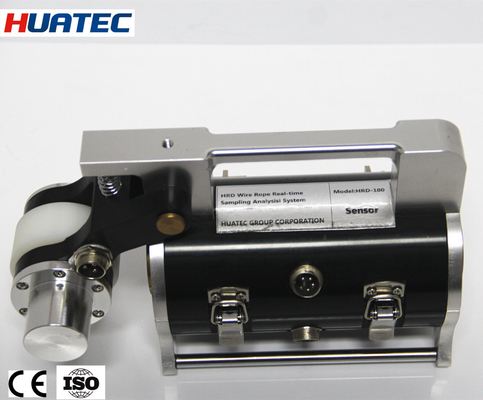

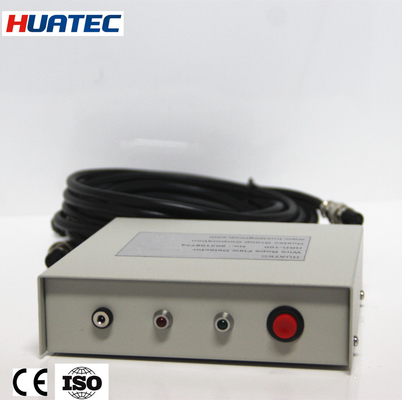

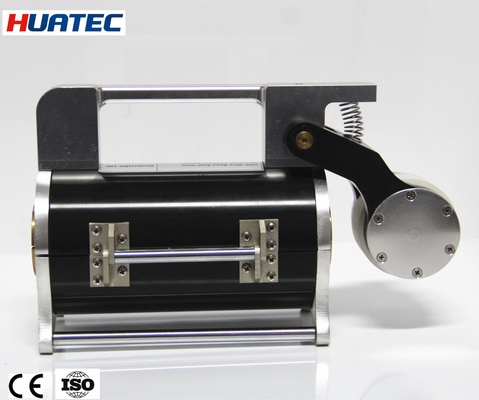

Probe　　           　      1 set　　  　 Real time alarm 　　　     　1pc
Signal cable                   1pc　　    　HRD PC analyse software 　1set
laptop    　　　　        1pc    　  　 Communication cable       　 1pc
Charger　　　　　    1pc                  Tool                                                 1set
Instruction manual    1set
