Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-5000 series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Model: TG-5000 Series Display: Color 320x240 Pixels
Operating Principle: Pulse Echo With Dual Element Transducers Measuring Range: 0.50mm To 508mm(0.02" To 20.00")
Material Velocity Range: 500 To 9999m/s Power Requirements: 2 AA Size Batteries
Size: 153mm X 76mm X 37mm Weight: 280g
High Light:

portable ultrasonic thickness gauge

,

digital ultrasonic thickness gauge

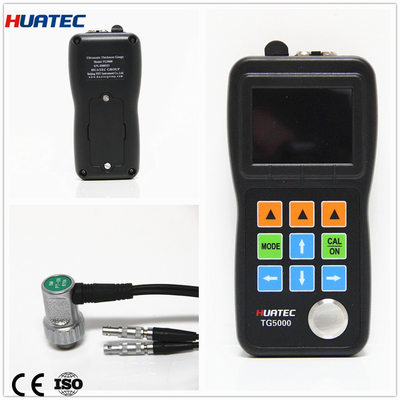

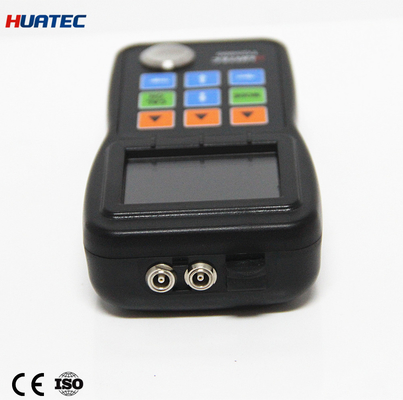

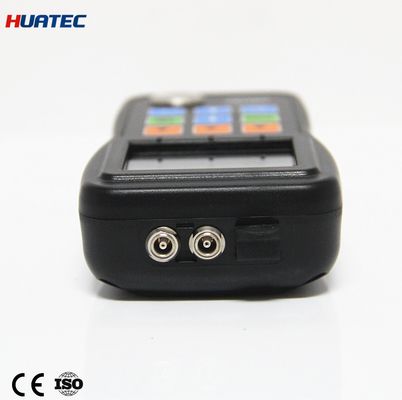

Live A / B Scan Thru Ultrasonic Paint Thickness Gauge Echo-Echo for wall TG5000 Series





 Features:
Color 320x240 Pixels Display
LiveSimultaneous Color A-Scan and Thickness Display
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
Time-based B-Scan Display
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings and 1000 waveform

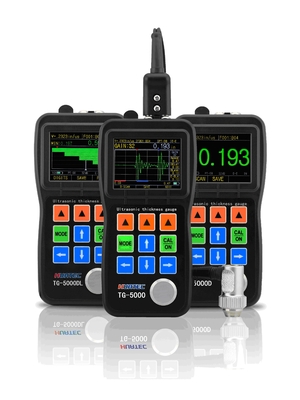

Specifications

Feature

TG-5000

TG-5000D

TG-5000DL

Data Logger Option

Color Display

  •

  •

  •



Live A-Scan

  •

  •

  •



Time-based B-Scan

  •

  •

  •



Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes

  •

  •

  •



Echo-Echo Mode

(Thru Paint & Coatings)

X

  •

  •



Data Logger

X

X

  •

  •

Data View Software

X

X

  •

  •





Instrument Specifications

Display Type

2.4" color OLED, 320X240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.50mm to 508mm(0.02" to 20.00"), depending on material, probe  and surface condition

Through Coating Function Coating thickness:0-8mm;Measuring range:3-50mm.

MeasuringResolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Rectify Modes

RF+, RF-, HALF+, HALF-, FULL

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

MaterialVelocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

English

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C (+10°F to +120°F)

Size

153mm X 76mm X 37mm(H X W X D)

Weight

280g including batteries



Data Logger Option Features

Capacity

100,000 readings,1000 waveforms,400 files

File Structure

Grid file

Rows X Columns

21 X 12

CommunicationPort

USB 2.0 (Full Speed ) port

Software

Data View PC software

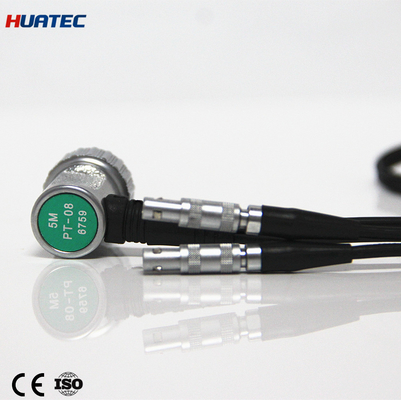

TG-5000 Series Probe/Transducer Specifications

Model

PT08

TC510

PT12

ZT12

PT06

PT04

GT12

Type

TG-5000
Standard

TG-5000D/DL Standard

Standard

Cast iron

Small tube

Fingertip

High-Temperature

Frequency

5MHz

5MHz

5MHz

2MHz

7.5MHz

10MHz

5MHz

Contact Diameter

11mm

13.5mm

13.5mm

17mm

8mm

6mm

15mm

MeasurementRange

0.8 to
100.0mm

1.2 to
200.0mm

1.0 to 200.0mm

4.0 to
508.0mm

0.8 to
30.0mm

0.7 to 12.0mm

4.0 to
80.0mm

TemperatureRange

-10 to 70℃

-10 to
70℃

-10 to 70℃

-10 to 70℃

-10 to
70℃

-10 to 70℃

-20 to 300℃

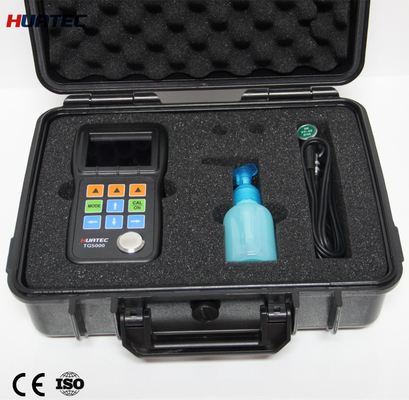

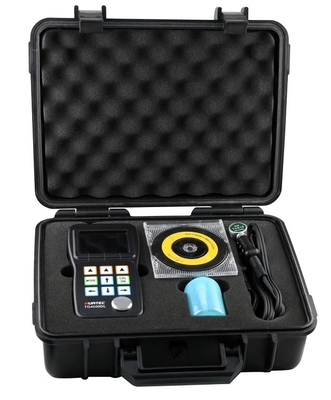

Standard Configurations

Thickness Gauge

1

Probe

1

Alkaline Battery

2

Couplant

1

Carrying Case

1

Operation Manual

1

USB Cable

1(Only TG-5000DL)

Software CD

1(Only TG-5000DL)



Optional Configurations

High-temperature Probe

Cast Iron Probe

Small Probe

Mini Probe

Probe Cable

Stepped Calibration Block

Rubber Sheath

Storage Option(Only TG-5000DL)
