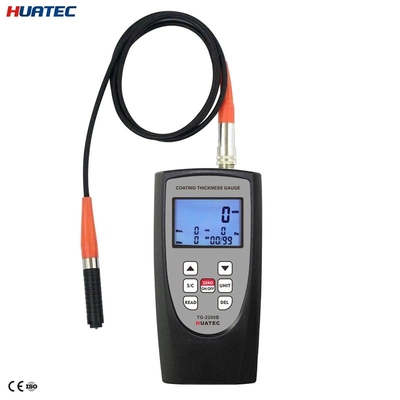

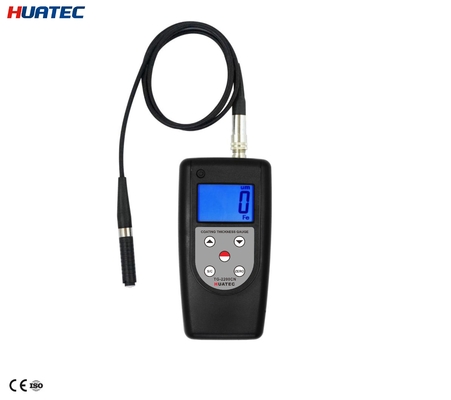

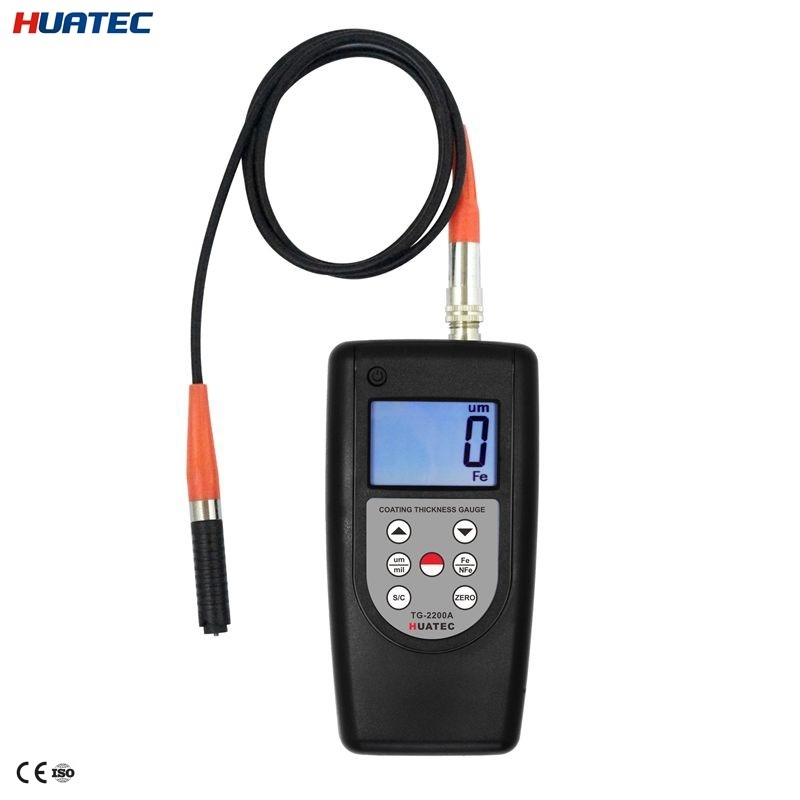

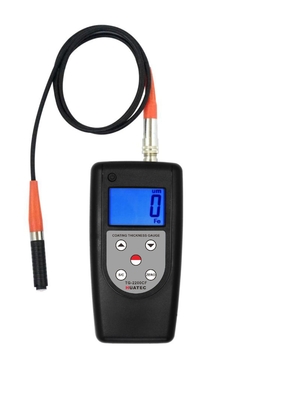

LCD Display Micro Coating Thickness Meter For Curved And Tiny Objects
Applications:
The TG2200CF measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
Features DetailsAccessories
* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: magnetic induction (F).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
|
Operating Principle |
Magnetic Induction (F) |
|
Measuring Range |
0~200 um / 0~8 mil |
|
Resolution |
0.1 um |
|
Min. Radius Workpiece |
convex 2 mm / concave 4 mm |
|
Min. Measuring Area |
2 mm |
|
Min. Sample Thickness |
0.1 mm |
|
Accuracy |
± 1~3%n or ± 2.5 um |
|
Auto Power Off |
|
|
Metric / Imperial |
Convertible |
|
Battery Indicator |
Low Battery Indicator |
|
Operating Conditions |
Temp. 0~40 °C, Humidity: 10~90 %RH |
|
Power Supply |
4 x 1.5 V AAA (UM-4) Battery |
|
Dimensions |
140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
|
Weight |
215 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Probe (F Type)
3. Calibration Base Set (F Type)
4. Calibration Foils (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
