Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings

Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings
Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings

Large Image :  Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: 1815

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Dimension: 550×530×200 Mm The Number Of Tracks: 10
Length Of Strips: 300 Mm Driver: 5 Sets Of Motors, 2 Track / Motor
Drying Time: Standard Track: 6,12,24,48 Hours Standard: ASTM D5895
High Light:

coating thickness tester

,

coating thickness meter

Drying Time Recorder

Product Introduction:

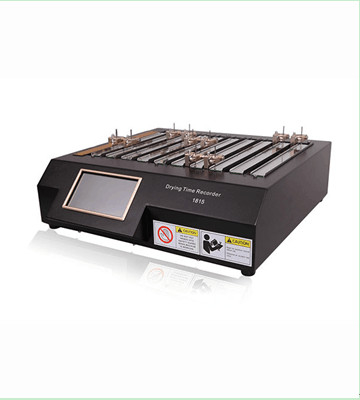

Drying Time Recorder is used for the test of drying time or gel behavior of a variety of paints and coatings. It has the characteristics of intuition and good reproducibility, and can accurately evaluate drying time in all stages.

Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 0Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 1Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 2Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 3

Introduction:

Drying Time Recorder is used for the test of drying time or gel behavior of a variety of paints and coatings. It has the characteristics of intuition and good reproducibility, and can accurately evaluate drying time in all stages.
Initiative design of touch screen control,customized user-defined start time and test time ,make the operation more intuitive and simple.

Technical Specification:

◆Dimension: 550×530×200 mm
◆The number of tracks:10
◆Length of strips: 300 mm
◆Driver:5 sets of motors, 2 track / motor
◆Drying Time:
-Standard track: 6,12,24,48 hours;
-Customized track (track 1):
Except the standard time, the user can customize the start and test time.
◆Function reset during the testing:
During the test, user can change the test time and re-start again.

Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 4

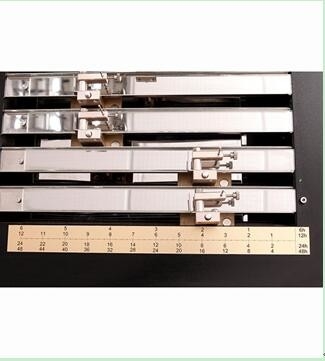

Test Timing Table:

Testing Time(hour)
Track No. 6 12 24 48 User Defined Function Reset
1
2
3
4
5
Remark: "√":The test canbeperformed.
"User Defined":User can set the test time between 1 to 48 hours upon
request,so that can conduct the personlizedtest.
"Function reset":During the test, user can change the test time and restart again.

Standard:

ASTM D5895

Order Information:

1815 Drying Time Recorder



Accessories of Dry Time Recorder--Glass Strip Holder

Introduction:

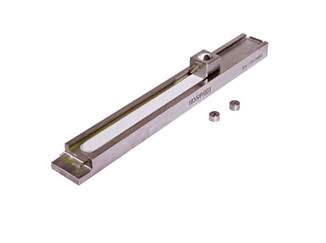

The holder is used to simply apply the paint to the glass strip to achieve film combined with cube applicator. It is made by high grade stainless steel to place the glass strip to allow the operator to hold the strip in position, cube applicator is positioned on the glass strip and fill paint into applicator depending on the demand and then applicator is drawn to the end of the glass strip.

Order Information:
1815/P/003 Glass Strip Holder
1815/P/004 Weight, set of 10, 5 grams per weight
1815/P/005 Glass strip
1805/1 Cube Applicator

Drying Time Recorder For Test Drying Time Or Gel Behavior Of Paints And Coatings 5
