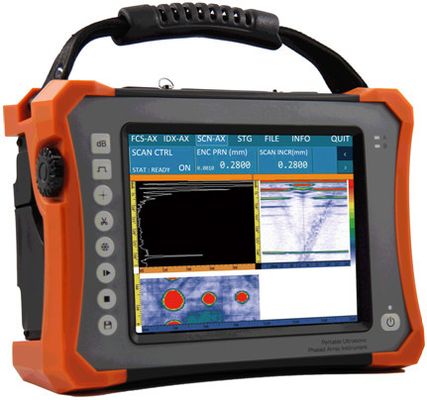

Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500

Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500
Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500

Large Image :  Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HPA-500

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD26485
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Display: 11-inch 800X600 TFT Color Display Memory: In-Built: 16G RAM+4GB FLASH ;SD Card (max To 32G); External: USB Drive
File & Entry Management System: Flexible Bridging Between Setting (Focal Law & Model), Calibration And Inspection Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
DDF: Dynamic Depth Focusing (DDF) Power: AC:100~240V,50~60Hz;DC:12V
Net Weight: 3.5kg With Battery Size: 284mm×202mm×95mm
High Light:

ultrasonic flaw detectors

,

ultrasonic flaw detection

,

digital ultrasonic flaw detector

Phased Array Flaw Detector NDT Ultrasonic Equipment Ultrasound Flaw Detector HPA-500



        Introduction

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.



Main Function

★ File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection



★ Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),

★ 3D Simulation Model

★ Image analysis

★ Natural Structure of Heat Dissipation

★ Dynamic Depth Focusing (DDF)

★ Smooth Filtering

★ Touch Screen

★ ACG Calibration

★ TCG Calibration





      Feature

  1. Dynamic Focusing

 Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 0

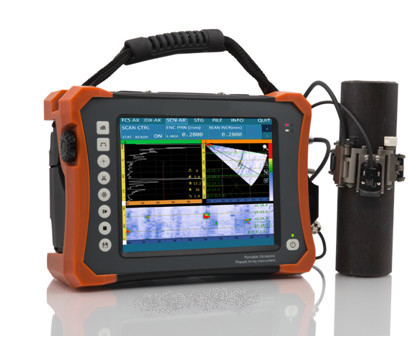

      II 3D Simulation Model



The 3D simulation scheme can be customized to offer one-for-all solutions.



Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 1

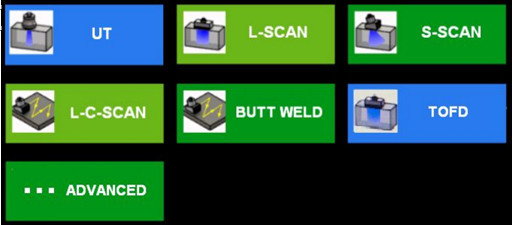

  III. APP Menu



Menu of the software is shown in the manner of APP.

It can be cut down or enlarged accordingly if asked by the users



Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 2



IV Metallic Housing

To strengthen the instrument, both shielding and heat-dissipating

Phased Array Ultrasonic Flaw Detector NDT Ultrasonic Equipment HPA-500 3

V. Protective Pedestal

To prevent any damage to either the instrument or the object



Channel Configuration

Mode PA UT TOFD
Channel 16:64 2 2







Physical Specification

Display 11-inch 800X600 TFT color display

Transducer

Ports

160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R
I/O Ports USB2.0 Port: 2(qty)
HDMI; encoder
LAN(Gigabit-NIC);
WIFI
I/O (commissioning)
2D Encoder
Memory

In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G);

External: USB drive

Weight 3.5Kg (with 1 battery)
Dimension 284mm×202mm×95mm
Power Supply AC:100~240V,50~60Hz;DC:12V
Charging (battery) within or individually
Battery Life 6 Hours
Working Power 24W
Language English

Temperature

Conditions

Ambiance:-20℃~50℃

Storage:-20℃~60℃

IP IP54





  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

Performance Specification

Mode PA UT TOFD
PRF 50Hz~10kHz 50Hz~5kHz 50Hz~5kHz
Voltage

Bipolar,

±45~±100V,

with 5V per step

Negative Square Wave, -75V~-250V, with 25V per step Negative Square Wave, -75V~-250V, with 25V per step
Pulse Width

20ns~800ns,

with 5ns per step

20~800ns, with 5ns per step 20~800ns, with 5ns per step
Damping 50Ω 80Ω / 400Ω 80Ω / 400Ω
Sampling Rate 125MHz 200MHz 200MHz
Delay Precision 2.5ns N/A N/A
Rx Delay 0~40us N/A N/A
Bandwidth 0.5MHz~19MHz 0.5MHz~15MHz 0.5MHz~15MHz
Gain 0.0~80dB 0.0~110.0dB 0.0~110.0dB
Filter

0.5-9.6MHz,2.5-12.9MHz,

3.8-19MHz Optional

broadband, narrowband broadband, narrowband
Rectification FW FW RF
Reject 0~80% 0~80% 0~80%
Scan Mode A/L/S/C A A/D
Triggering Encoder N/A Encoder
Scan Line Max 128 N/A N/A
Skew

L-scan:-89°~+89°

S-scan:-89°~+89°

N/A N/A
Smart-Cal Velocity/Delay/ACG/TCG/Encoder DAC/DGS

Delay/X-Value/PCS/

Wave/Encoder

Range

0.0~1000mm,

min 1mm

0.0~2000mm 0.0~2000mm

Displaying Delay

(max)

1000mm 2000mm 2000mm

Pulse Shift

(max)

N/A 2000mm 2000mm
Unit mm mm mm
Gate A/B A/B A/B
Gate Start Available within the range Available within the range Available within the range
Gate Width Available within the range Available within the range Available within the range
Gate Threshold 0-100% 5-95% 0-100%
Alarm Signal Buzzer / LED Buzzer / LED Buzzer / LED
Spotting Crest / Flank Crest / Flank Crest / Flank
Readout

Amp/Path/

Horizontal/Depth

Amp/Path

/Horizontal/Depth

Amp/Path

/Horizontal/Depth

Resolution 0.5mm 0.1mm 0.1mm











































































































Application

  • Common or special welded seam of steel structure, utility boiler, pressure vessel, pipeline, nuclear power infrastructures, watercraft, oil tank, ethylene tube, etc.
  • Railway welded seams, locomotive wheel sets and axles.
  • Aluminum alloy FSW butts and bonding of composites used in aerospace industry.
  • Blades and bolts used in power industry.
  • Cases when there’s not enough space for movement whilst inspection; Cases when conventional UT is preferred.



Packing Details

HPA-500 1pc

PAUT Probe 1pc

PAUT Probe Wedge 2pcs

UT Normal Probe 2.5P20 1pc

UT Angle Probe 2.5P13×13 60°1pc

UT Probe Cable LEMO 00-BNC 2pcs

Li-ion battery 1pc

Charger 1pc

Power converter 1pc

HDMI Cable 1pc

Crossover Cable 1pc

Allen Wrench (S2.5) 1pc

Instrument Suitcase 1pc

USB Drive Disk (8G) 1pc

User Manual 1pc

Certificate 1pc

Optional accessories

TOFD Probe 5MHz 6mm/7.5MHz 3mm/

TOFD Wedge 60°w/anti-wear nail , 70°w/anti-wear nail

TOFD Wedge R100 curve surface R100/0°

TOFD Probe Cable LEMO 00-LEMO 00

Non-Parallel TOFD Scanner

Scanner for Phased Array

Encoder Cable Extension

Other Allen Wrench for TOFD

Other probes/wedge for Phased Array and TOFD

Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Test block V1,V2,PAUT, PA-A, PA-B
Test block TOFD
Test blocks DAC, ASME etc.
