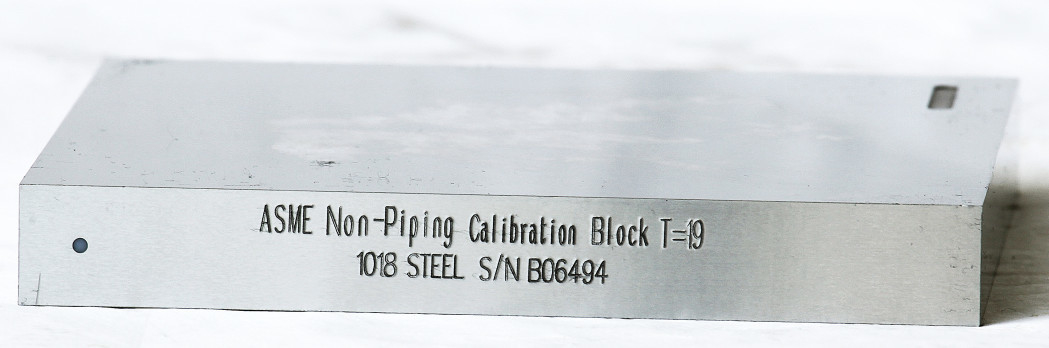

19mm Thickness Duplex Asme Ut Calibration Block

19mm Thickness Duplex Asme Ut Calibration Block
19mm Thickness Duplex Asme Ut Calibration Block 19mm Thickness Duplex Asme Ut Calibration Block 19mm Thickness Duplex Asme Ut Calibration Block

Large Image :  19mm Thickness Duplex Asme Ut Calibration Block

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: asme

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500pcs per month
Detailed Product Description
Material: Carbon Steel, Stainless Steel, Duplex Stainless Steel 2205,aluminum 7075 Thickness: 19mm/38mm/75mm/125mm
Hole Diameter: 2.5mm/3/5.5/6.5 Calibration Certificate: Included
Case: Included OEM: Yes
Product Name: ASME Ultrasonic Calibration Blocks
High Light:

duplex Asme Ut Calibration Block

,

duplex Ut Calibration Block

,

19mm Asme Ut Calibration Block

ASME ultrasonic Calibration Blocks Ultrasonic calibration blocks ultrasonic calibration blocks uk



ASME calibration block (non pipe)

Standard: ASME BPVC-V-2015



The size and shape of ASME non-pipe weld test block are shown in the chart below, when inspected
For inspection on materials with surface diameter greater than 500mm, test blocks with the same curvature as the workpiece or standard test blocks with a diameter equal to or less than 500mm can be used
During the upper inspection, the curve test block, namely the tube seam test block, should be used.

1. The distance between each slot and either end of the test block or other slots is not less than T or 25mm, if larger.
2. The minimum length L of the test block shall be 200mm or 8T, if larger.
3. When the inner diameter is equal to or less than 100mm, the minimum radian is 270°. When the inner diameter is greater than 100mm, the minimum arc length is 200mm or 3T, and the larger is taken
4. The depth of each tank is 11% T≥h≥ 8% T, width ≤6mm, length ≥225mm



ASME calibration block (non pipe)

Standard: ASME BPVC-V-2015



The size and shape of ASME non-pipe weld test block are shown in the chart below, when inspected
For inspection on materials with surface diameter greater than 500mm, test blocks with the same curvature as the workpiece or standard test blocks with a diameter equal to or less than 500mm can be used
During the upper inspection, the curve test block, namely the tube seam test block, should be used.

1. The distance between each slot and either end of the test block or other slots is not less than T or 25mm, if larger.
2. The minimum length L of the test block shall be 200mm or 8T, if larger.
3. When the inner diameter is equal to or less than 100mm, the minimum radian is 270°. When the inner diameter is greater than 100mm, the minimum arc length is 200mm or 3T, and the larger is taken
4. The depth of each tank is 11% T≥h≥ 8% T, width ≤6mm, length ≥225mm



Material: carbon steel 1018, stainless steel 304/316, duplex stainless steel 2205,aluminum 7075



Hole diameter:2.5/3/5.5/6.5mm

Thickness: 19mm/38mm/75mm/125mm



Mark: OEM can be done

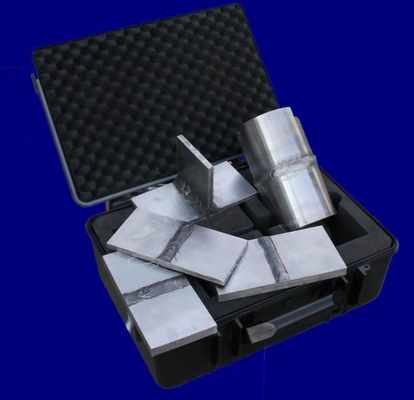

19mm Thickness Duplex Asme Ut Calibration Block 0



19mm Thickness Duplex Asme Ut Calibration Block 1

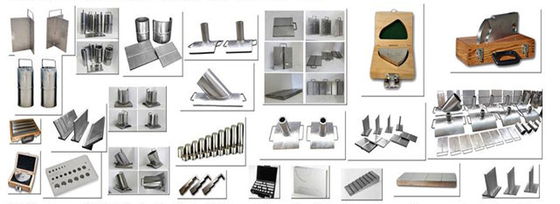

HUATEC Group offer all kinds ultrasonic calibration block
