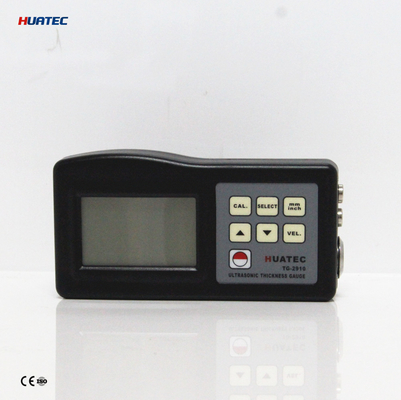

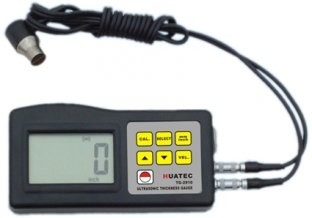

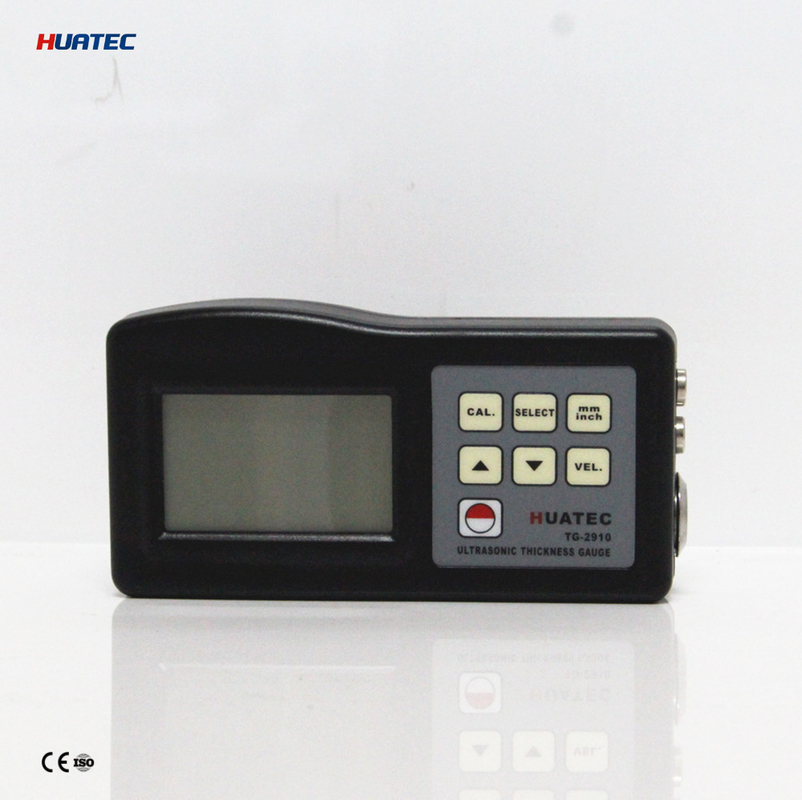

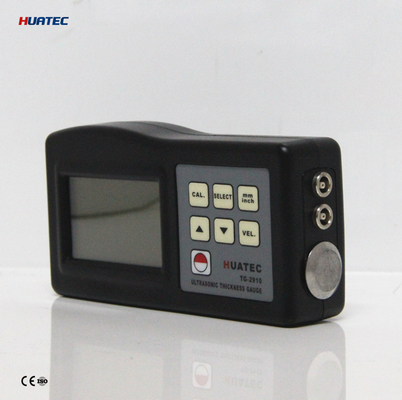

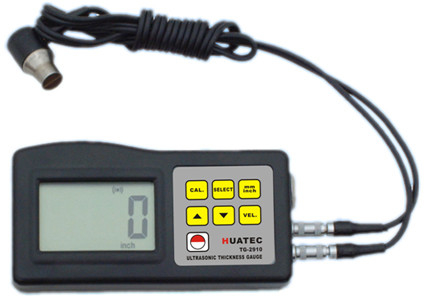

4 Digits LCD with EL backlight Ultrasonic Thickness Gauge TG-2910 for Measuring Thickness and corrosion of Boilers

Application

Ultrasonic Thickness Gauge TG-2910 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

Description

Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 4 digits LCD with EL backlight

Resolution: 0.01mm

Accuracy: ±(0.5%H+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Batteryindicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 120x62x30mm

Weight: 164g (not including battery)

Standard Delivery

Main unit                                1
5M Φ8 Transducer            1
Couplant  bottle                  1
Carrying case                       1
Instruction manual           1

Optional Accessories for Ultrasonic Thickness Gauge TG-2910

1. 6M Φ6mm thin material probe:

 measuring range (steel): 1.0-50.0mm    Operating temperature:-10-+60℃

5MΦ12mm high temperature probe:

 measuring range (steel):4.0-100.0mm  Operating temperature:-10-+300℃

3. Cable and Software for RS232C interface
