Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Deviation: | ±（1~3）%H±1μm, | Data Interface: | Bluetooth 2.0 Wireless |
| Display: | 2.4inches Color Screen | Resolution: | 0.1um/0.01mil |
| Measuring Range: | Depends On Probes | Product Name: | Marx210 High Quality Metal Probles Coating Thickness Gauge,Accurate Magnetic Coating Thickness Gauge |
| Power: | 1.5V(AAA)*2 | Warranty: | 12 Months |
| High Light: | coating thickness tester,digital thickness gauge |
||

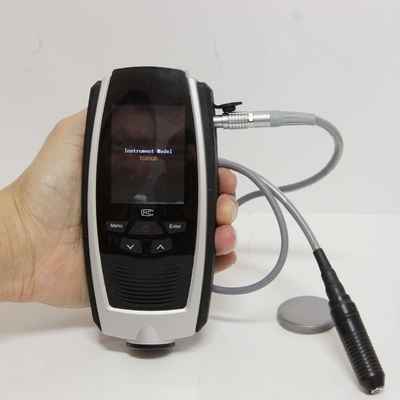

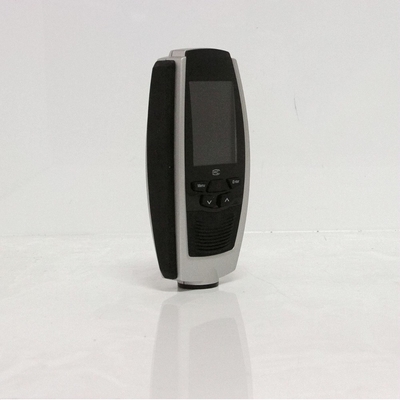

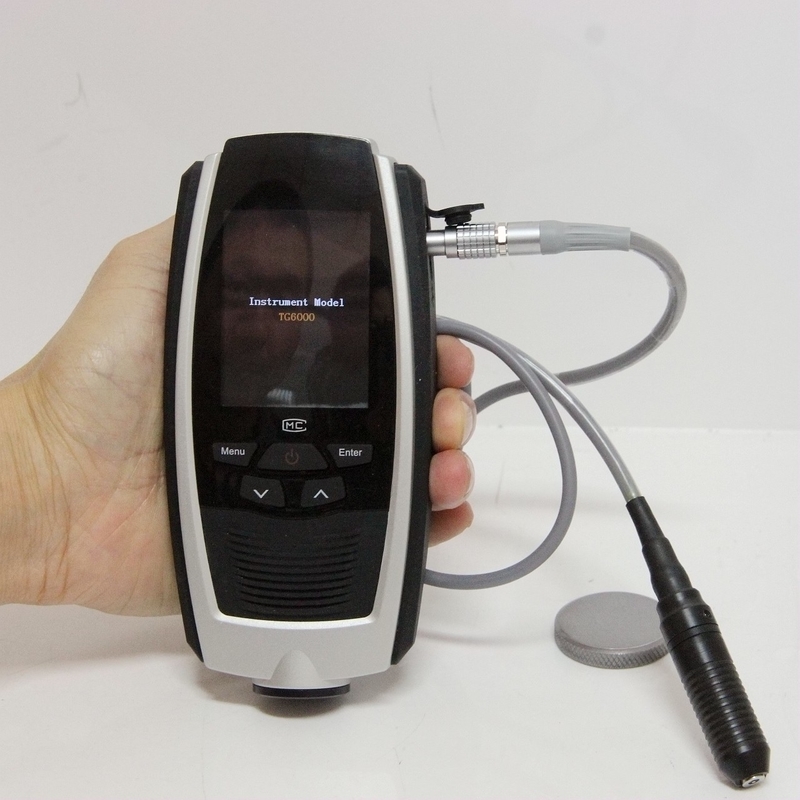

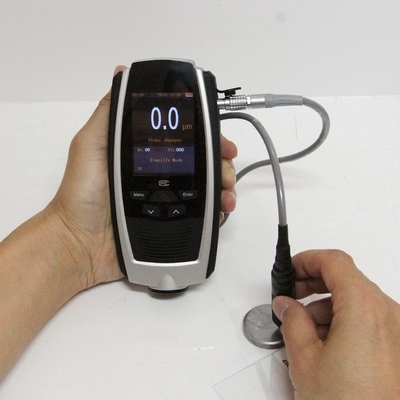

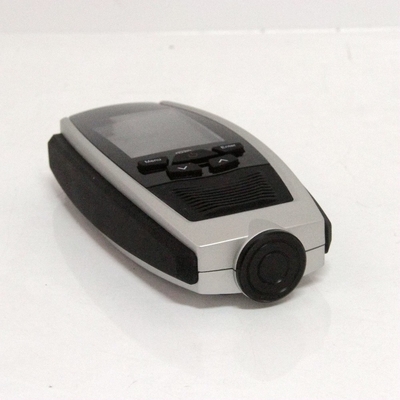

Digital Coating Thickness Gauge Painting Thickness Meter Layer Thickness Meter
TG-6000 SERIES Coating Thickness Gauges can equip with different kind of probes, customer should choose right probe when ordering. For example, Fe probe use magnetic induction method to measure the thickness of non-magnetic coating on ferromagnetic material, NFe probe use eddy current method to measure the thickness of non-conductive coating on conductive metal.
This gauge can be used widely in machinery, automobile,shipbuilding,petroleum,chemical,electroplating, spraying plastics, enamel, plastics and so on.
| Gauge parameter | ||
| Probe type | F | N |
| Theory | Magnetic induction | Eddy current |
| Temperature compensation | PLL technique | |
| Measure range | Depend on Probe | |
| Display | 2.4 inch TFT color screen,320*240 resolution | |
| Data interface | Bluetooth 2.0, can be communicated with PC and printer by wireless | |
| Saving | Auto and Manual save, 1000 saving files, each file can save 12 data | |
| Calibration | Matrix, system, One-point | |
| Measuring speed | Single, continuous | |
| Language | English | |
| Calender | Information of date and measure data of date | |
| Unit | Metric or British system | |
| Back light | Manual set 6 different levels of brightness | |
| Shutdown | Manual or auto shutdown | |
| Measure mode | Simplify; Minimum value capture; Monitoring mode; Statistical | |
| Gauge parameter | |
| Working environment | Humidity:≤90%; |
| Working period | Over 10,000 data(lowest back-light level) |
| Power | 2 AA batteries |
| Size | 150mm(L)*68mm(W)*33mm(H) |
| Weight | 220g(include batteries) |
| Probe parameter | ||||||
| Type | F0.5 | F1.2 | N1.2 | F3 | F5 | F10 |
| Measure range | 0~0.5 | 0~1.25 | 0~1.25 | 0~3 | 0~5 | 0~10 |
| Min plane diameter for matrix | 10 | 15 | 19 | 16 | 18 | 22 |
| Min radius of matrix(concave) | 5 | 6 | 10 | 10 | 10 | 12 |
| Min radius of matrix(convex) | 1.5 | 1.5 | 5 | 5 | 5 | 5 |
| Probe parameter | ||||||
| Type | F0.5 | F1.2 | N1.2 | F3 | F5 | F10 |
| Min diameter for Internal corrosion protection probe | 40 | 42 | 80 | 60 | 60 | 70 |
Deviation | ±(1~3)%H±1μm, | ±(2~3)%H | ±(2~4)%H | |||
| Probe type | F for magnetic,N for eddy current | |||||
| Min thickness for matrix | F:1mm, N:0.5mm | |||||
| Attention:the units above is MM. | ||||||
