Product Details:
Payment & Shipping Terms:
|
| Name: | Hardness Tester | Optional Impact Devices: | DC/D+15/G/C/DL |
|---|---|---|---|
| Display: | LCD Display Of 128*64 Matrix | Data Memory: | 48~600 Groups |
| Hardness Scale: | HV ,HB,HRC,HRB,HRA,HS | Communication Interface: | RS232 Or USB |
| Warranty: | 12 Months | Power Supply: | 3V(2 AA Size Alkaline Battery) |
| High Light: | hardness testing machine,metal hardness tester |
||

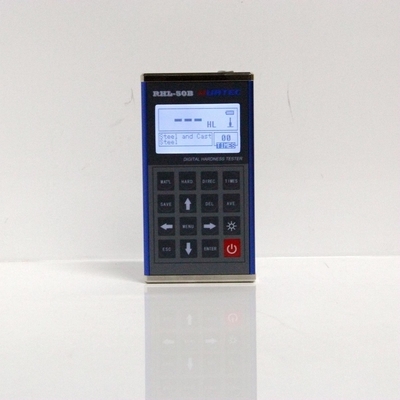

RHL-50B New type economic digial portable leeb hardness tester for metal
Features
l LCD display of 128×64 matrix is used.
l Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).
l English displaying and menu operating, the operation is easy and convenient.
l With RS232 interface, multiple communication modes are adopted to meet customized requirements of various users.
l Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system canidentify the type of impact device automatically.
l Max 600 groups(impact times:32~1)of data can be stored at internal non volatile data storage.
l Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
l Back light display has been used to make convenient for the use in poor light.
l Test values software calibration function.
l Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
l Printer be separated from main unit and copies of testing results can be printed as required.
l Power is two of AA battery. Continuous working period: approx. 100 h (no back light on).
l Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
Main Application
l The assembled machinery and permanently installed parts
l Die cavity of molds
l Heavy work piece
l Failure analysis of pressure vessel, steam turbo-generator set and other equipment
l Narrow testing space where work piece installed
l Bearings and other parts
l Cases which require the test result with normalized original recording
l Material identification of the metal material warehouse
l Quick tests of large range and multipoint measuring positions for heavy workpiece
| No. | Remarks | |||
| Standard Delivery | 1 | Main unit | 1 | |
| 2 | D type impact device | 1 | ||
| 3 | Small supporting ring | 1 | ||
| 4 | Nylon brush (A) | 1 | ||
| 5 | High value Leeb test block | 1 | ||
| 6 | Communication cable | 1 | ||
| 7 | DataView Software | 1 | ||
| Additional Optional Delivery | 8 | Printer | ||
| 9 | Nylon brush (II) | In case of choosing G type impact device | ||
| 10 | Various non-conventional type of impact devices | See table 3 | ||
| 11 | Various non-conventional type of impact supporting ring | See table 4 |
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
