Professional Testing Equipments:Ultrasonic Flaw Detector
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hardness Tester | Hardness Scale: | HL, HRC, HRB, HRA, HV, HB, HS |
|---|---|---|---|
| Standard Impact Device: | Impact Device Of Type D | Data Memory: | 500 Groups Max.(relative To Impact Times 32~1) |
| Large Screen: | Dot Matrix LCD,128*64 Dots | Communication Interface: | USB1.1 |
| Battery Pack: | 6V NI-MH | Continuous Working Period: | About 150hours |
| High Light: | hardness testing machine,metal hardness tester |
||

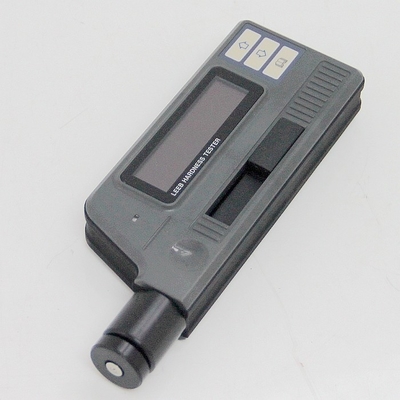

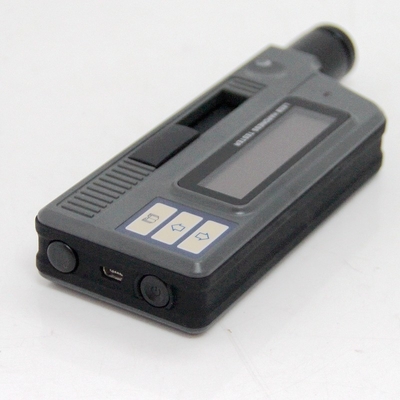

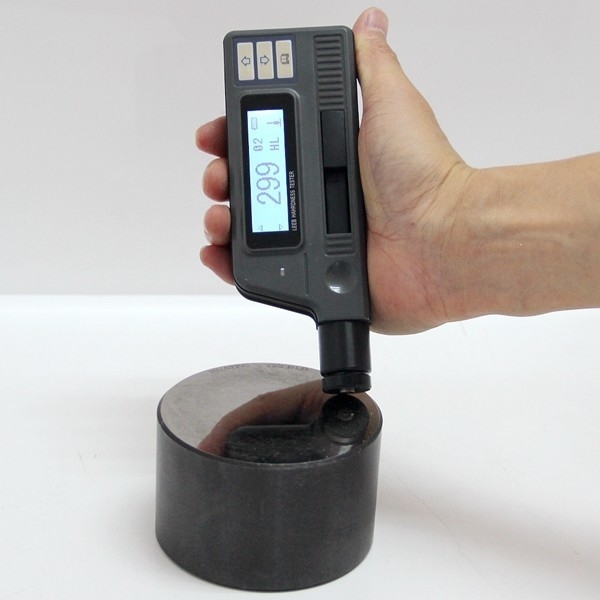

Digital Metal Harding Test Machine,Portable Metal Hardness Tester RHL-TH130
1) Large screen(128×64 dot matrix LCD), showing all functions and parameters.
2) Test at any angle, even upside down.
3) Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
4) Seven impact devices are available for special application. Automatically identify the type of impact devices.
5) Large capacity memory could store 1000 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
6) Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
7) Battery information indicates the rest capacity of the battery and the charge status.
8) User calibration function.
9) USB port with the PC humanity multi-functions data proceeding software.
10) Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
11) NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
12) Auto power off to save energy.
13) Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.
Main Application
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece
Measuring range:HLD(170~960)HLD
Measuring direction:360°
Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
Display:dot matrix LCD,128×64 dots
Data memory: 500 groups max.(relative to impact times 32~1)
Printing paper: width is (57.5±0.5)mm, diameter is 30mm
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous working period:about 150 hours(With backlight off, no printing)
Communication interface:USB1.1
Outline dimensions:212mm×80mm×32mm

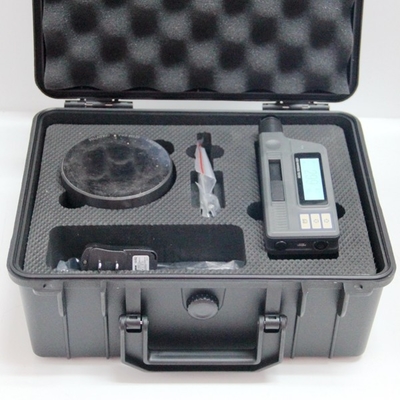

| No. | Item | Quantity | Remarks | |
| Standard Configuration | 1 | Main Unit | 1 | |
| 2 | D type impact device | 1 | Without cable | |
| 3 | Standard test block | 1 | ||
| 4 | Cleaning brush (I) | 1 | ||
| 5 | Small support ring | 1 | ||
| 6 | Battery Charger | 1 | 9V 500mA | |
| 7 |
