Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display

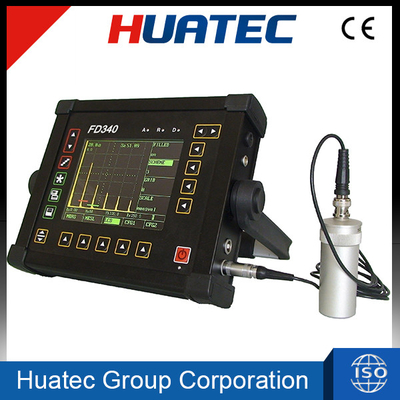

The FD340 Digital Ultrasonic Flaw Detector combines HUATEC' industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The FD340 flaw detector's blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.
• Simple to use, quick to operate, from basic to challenging inspection requirements.
• From high frequency inspections for thin materials up to low frequency for attenuative materials.
• From automotive, power generation, oil and gas to aerospace applications.
Harsh field and industrial environments
• Extended temperature range from -10℃ to 60 ℃.
• Weighs only 2.0 kg.
• Extended battery life to 12 hours under real test conditions.
Fast and bright color screen
Color brings you many additional benefits in your daily inspection job:
• Color display of monitor gates and curves (DAC, TCG, DGS) for direct recognition
• Color coded display of legs for angle beam inspection of welds
• Use of color to display references (A-scan) to make comparisions easy
Main Technical Index:
FUNCTIONS
|
PARAMETERS
|
Frequency
|
0.2 to 1 MHz
0.5 to 4 MHz
2 to 20 MHz
|
Detection range
|
0.5 to 10,000 mm (steel)
range selectable in fixed steps or continuously variable
|
Sound velocity
|
1,000 to 15,000 m/s,
continuously variable in steps of 1 m/s and 22 selectable material velocities
|
Working methods
|
Pulse echo, dual, and thru-transmission
|
Data memory
|
Minimum 900 datasets store instrument setups or reports including operation parameters plus A-scan, the stored datasets can be easily previewed, recalled and exported to a computer for edit and printing. Memory can be expanded up to 1900 datasets.
|
Units of measurement
|
mm, inch
|
Gain adjustment
|
0 to 110 dB adjustable in selectable steps 0.5, 1.0, 2.0, 6.0, 12.0, user definable, and locked (step 0)
|
Reject
|
Linear, 0 to 90 % screen height Variable in steps of 1 %
|
Monitor gates
|
2 independent gates in color bar mode, start and width variable over the entire calibration range, response threshold of 5 to 95 % screen height variable in steps of 1 %
|
Display
|
5.7 inch LED backlight TFT_LCD
Display resolution 320 x 240 pixels
A-scan resolution 200 x 220 pixels, 320 x 220 pixels (zoom)
|
Probe connections
|
2 x LEMO_ 1
|
Communications
|
RS232, bi-directional
An USB adaptor cable can be provided to connect the SDU 35X to a computer that does not have RS 232 port
|
Alarm
|
Alarm signal via LED and connectable internal horn. Alarm mode of positive logic, negative logic or DAC
|
Dialog languages
|
Chinese, German, English, French, Italian, Portuguese, Spanish, Danish, Swedish, Norwegian, Finnish, Czech, Slovenian, Romanian, Dutch, Croatian, Hungarian, Russian, Polish, Slovakian, Japanese, Serb
|
Time of battery working
|
12 hours with Li-ion battery pack
|
Battery power
|
Li-ion battery pack (6.6 Ah)
|
Power pack charger operation
|
Via an external power supply (100 to 240 VAC); Operating voltage: 9 VDC
|
Appearance size
|
177 mm x 255 mm x 51 mm (H x W x D)
|
Weight
|
2 kg, including batteries
|
Standard Delivery of Digital Portable Ultrasonic Flaw Detector FD340:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case
Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
--------------------------------------------------------------------------------------------------------------
