Application:

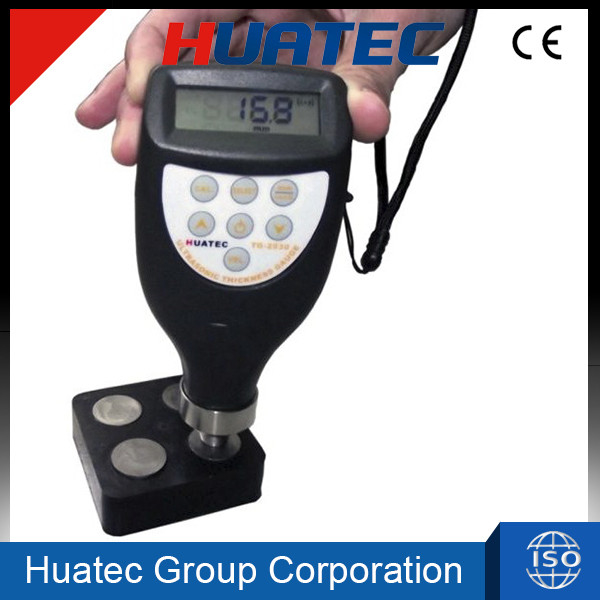

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Display: 5 digits LCD with EL backlight
Resolution: 0.1mm or 0.01mm
Accuracy: ±(0.5%H+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
Weight: 81g(not including battery)
Standard Delivery
Main unit 1
5M Φ8 Transducer inbuilt 1
Couplant bottle 1
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and Software for RS232C interface
-------------------------------------------------------------------------------------------------------------
