Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers

Name: Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers
Brand: Huatec
SKU: TG-8825
Price: 1 USD
Availability: InStock
Rating: 4.8 (172 reviews)
ISBN: 9278696

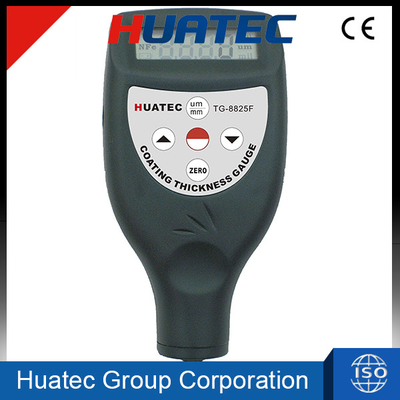

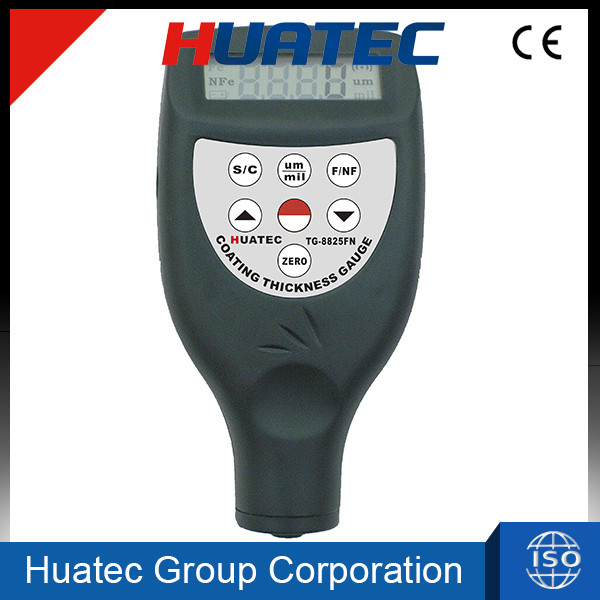

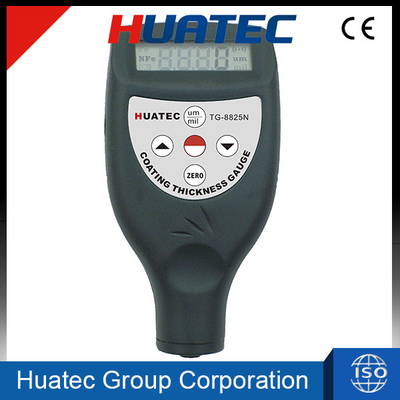

Large Image : Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers

Product Details:

Place of Origin:	Beijing
Brand Name:	Huatec
Certification:	CE, GOST
Model Number:	TG-8825

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton Package
Delivery Time:	3-5 working days
Payment Terms:	Paypal / Western Union / TT
Supply Ability:	1000

Contact Now

Detailed Product Description

Detailed Product Description

Coating Thickness Gauge TG8825(elecronic thickness gauge, paint thickness gauge, elcometer, coating thickness, NDT Instruments, paint thickness, thickness gauge, coating inspection, paint inspection)

Description:

Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
Measuring principle: magnetic induction & eddy current
Measurement range:0～1250um in built probe (integrated probe)
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1～3%n or ±3um
Probe type recognition: Manual (For TG-8825FN)
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4x1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm

Application:
1. Coating thickness gauge TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of Paint Thickness Gauge TG8825FN:
Main unit(1250um)                        1
F type probe 1
N type probe                                 1
F calibration base set 1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case 1
Instruction manual                        1

Optional Accessories
Cable and software for RS-232C

--------------------------------------------------------------------------------------------------------------
