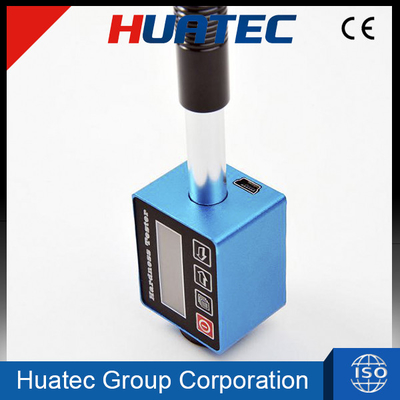

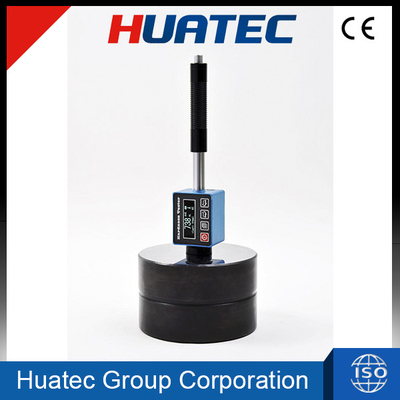

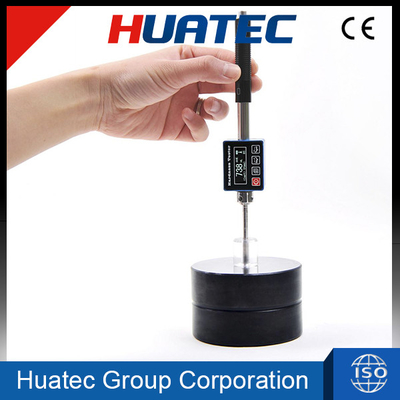

OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port

Certification
China HUATEC GROUP CORPORATION certification
China HUATEC GROUP CORPORATION certification
Customer Reviews
huatec hardness tester, very good quality,we are very satisfied with the portable hardness tester RHL-50. Kumaren Govender Sotuth Africa

—— Kumaren Govender

I'm Online Chat Now

OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port

OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port
OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port

Large Image :  OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port

Product Details:

Place of Origin: Beijing
Brand Name: Huatec
Certification: CE, GOST
Model Number: RHL-110D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package
Delivery Time: 3-5 working days
Payment Terms: Paypal / Western Union / TT
Supply Ability: 1000
Detailed Product Description

Detailed Product Description

OLED Display Portable Leeb Hardness Tester RHL-110D With Mini USB Communication Port





Introduction

Model RHL-110D portable hardness tester can directly measure different types of hardness value including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with international standards it's also can meet the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards which are issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.

With low-power design and high-performance Li batteries which can achieve ultra-long standby time work it has more compact and flexible design increases user flexibility.


Features

  • All English menu display is easy to manipulate. OLED display for better use in any environments.

  • With Mini USB communication port.

  • Large capacity memory can store 48~350 groups (impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.

  • Conversion to tensile strength (U.T.S).

  • For all metallic materials.

  • Provide software calibration function.

  • High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.

  • PC Software can be equipped to meet the higher demands in quality assurance, activities and management.

Technical Specification

  • Measuring range: 170~960 HLD

  • Measuring direction: 360°

  • Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS

  • Display: dot matrix LCD 128×32 dots

  • Data storage: 350 groups maxim, relative to impact times 32~1

  • Charging power supply: 5VDC,220VAC

  • Charging time: 1.5~2h

  • Battery: 3.7V,Li(80mAh)

  • Using temperature: 0 ~ 40℃

  • Storage temperature: -25 ~ 70℃

  • Continuous working period: 12h

  • Communication port: Mini USB

  • Outline dimensions: 146 × 30 × 25mm

  • Wight: 110g

Comparison table

Model

RHL-110D

Hardness scale

HL, HRC, HRB, HRA, HV, HB, HS

Measuring range

HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68),

HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)

Clock

Real-time data and time

Auto off

3~5 Minutes without any operation

Data Interface

USB

Power

Rechargeable Li Battery, 3.7V

Memory

48~350 group (Impact times: 32~1)

Display

128 × 32 OLED

Continuous Working time

About 12h

Charging time

1.5 ~ 2 hours

Overall dimensions

146 × 30 × 25 mm

Weight

110g

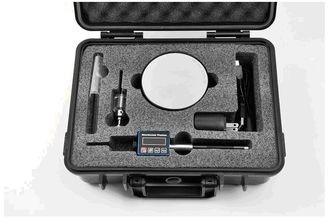

Configuration



NO.

Item

Quantity





Standard Configuration

1

Main uni.

1

2

Small support ring

1

3

Cleaning brush (I)

1

4

High value test block

1

5

Charger

1

6

Communication cable

1

7

Software

1

Optional

Configuration

8

Other type of support rings



9

High, medium, and low HLD value test block



--------------------------------------------------------------------------------------------------------------
