Product Details:
Payment & Shipping Terms:
|
Typical Applications
* Die cavity of molds
* Inspection of bearing and other mass produced parts on a production line
* Failure analysis of pressure vessel, steam generator and other equipment
* Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces.
* Testing surface of a small hollow space
* Material identification in the warehouse of metallic materials
* Rapid testing in large range and multi-measuring areas for large-scale work piece
Specifications

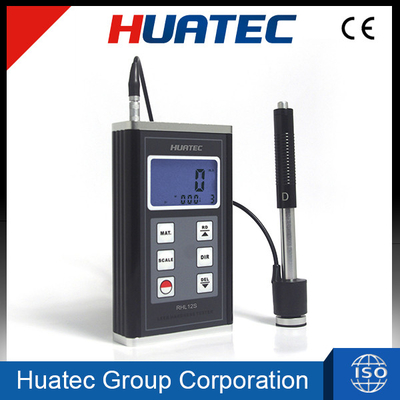

* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
Technical Specifications
Display: 12.5mm LCD with back light
Accuracy: Display error ±0.8% at LD=900
Measuring range: 170-980L
Conversion: HL-HRC-HRB-HB-HV-HSD
Materials: 9 different common materials
With RS232C interface
Memory: 50 data can be stored and re-readable
Impact device: D type, weight: 75g
Power supply: 4x1.5V AAA size battery
Dimension: 130×76×32mm
Weight: 340g (not including batteries)
Working temperature:- 10℃~+50℃
Storage temperature:- 30℃~+50℃
Standard Accessories:
1. Main Unit 1pc
2. Standard Test Block 1pc
3. Measurement Sensor 1pc
4. Carrying Case 1pc
5. Operation Manual 1pc
6. Small Support Ring 1pc
7. Cleaning brush 1pc
Optional Accessories:
1. Impact Body
2. Support Rings set
3. USB, RS-232C data cable with software
