400mm Bluetooth Ultrasonic Wall Thickness Gauge 4 Digit 10 mm LCD

Name: 400mm Bluetooth Ultrasonic Wall Thickness Gauge 4 Digit 10 mm LCD
Brand: HUATEC
SKU: TG-3500
Price: 300 USD
Availability: InStock
Rating: 4.9 (188 reviews)
ISBN: 11532954

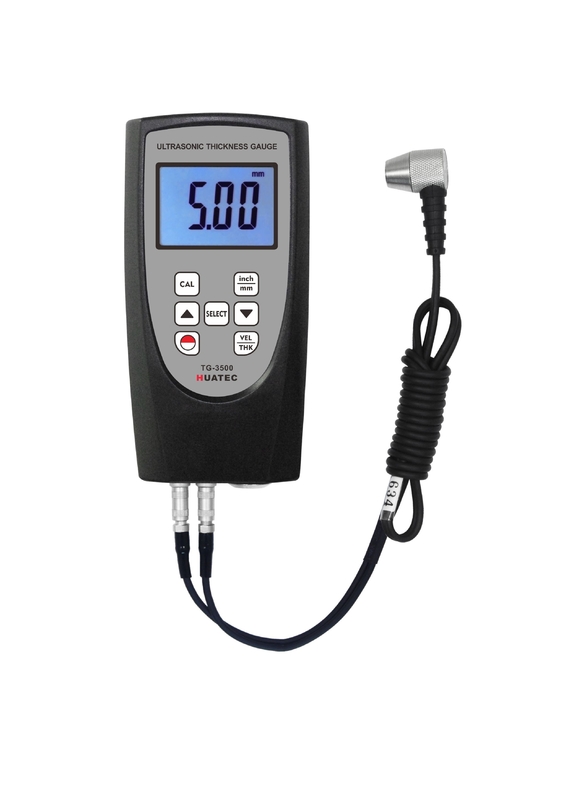

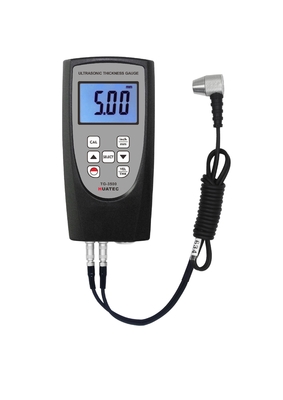

Large Image : 400mm Bluetooth Ultrasonic Wall Thickness Gauge 4 Digit 10 mm LCD

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TG-3500

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD300-USD400
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Range:	0.75-400mm	Display:	4 Digit, 10 Mm LCD
Operating Principle:	Ultrasonic	Battery Indication:	Low Battery Indication
Sound Velocity:	1000~9999 M/s	Resolution:	0.1mm / 0.01mm / 0.001inch
High Light:	digital ultrasonic thickness gauge , through coating thickness gauge

400mm Bluetooth Ultrasonic Wall Thickness Gauge 4 Digit 10 mm LCD

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

Features

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”

Specifications

Display	4 Digit, 10 mm LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	0.75~400mm (45# steel) (Depend on Probe)
Battery Indication	Low Battery Indication
Sound Velocity	1000~9999 m/s
Lower Limit Steel Pipes	Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block	Included
Resolution	0.1mm / 0.01mm / 0.001inch
Accuracy	± (0.5%n + 0.1)
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	140 x 72 x 34 mm
Weight	185 g (Not Including Batteries)

Standard Delivery:

1. Main Unit

2. 5MФ8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

5. Bluetooth data output with software
