Portable Leeb Hardness Tester Device RHL350

Features

l Ultra-thin shell, more easily to hold

l Suitable for multiple impact device and 6 types of hardness scales are available for various applications

l Large and clear digital display

l Ultra-low power dissipation with three AAA batteries powered

Technical Specification:

l Hardness Scales:HL, HRC,HRB,HV,HB,HS

l Test Precision:HLD:±6 HRC:±1 HB:±4

l StandardImpact Device: impact device of Type D

l Upper / Lower Limits Setting:(170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (13.5-101.7)HRB

l Optional Impact Device:D/ C /DC / D+15 / DL/ G

l Number of Impact Devices Equipped With One Time: any

l PC Interface: USB 2.0

l Language:Chinese/English

l Screen Display:128X64 dot matrix LCD, backlight and adjustablecontrast

l Measuring Direction:360°(down,inclined down,level,inclined up and up)

l Data Memory :100 readings

l MaximumHardness of The Measured Work Piece:940HV(for D,DC,DL,D+15,C impact device)

l Radius of Rurvatureof The Measured Work: Rmin=50mm(If using Alien supporting ring, Rmin=10mm)

l Recognition Function:Recognize the type of the impact device by itself

l Measurable Material:Steel and cast steel, alloy tool steel, stainless steel,gray cast iron, nodular cast iron, aluminum casting alloy, copper zinc alloy(brass), copper tin alloy(bronze), fine copper

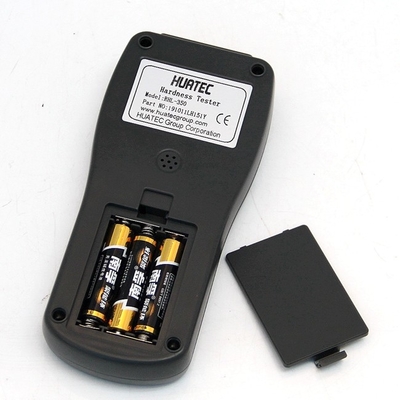

l Power Supply: 1.5V AAA battery ( 3 PCS)

l Working time: about 150 hours

l Shape Size:159mm*72mm*28mm

l Weight:540g

List of components not warranty

1 the shell

2 the screen display

3 the panel

4 the impact body

5 the support ring

6 the probe cable

7 ink ribbon

8 the battery(the damage caused by faulty operation problem)
