Professional Testing Equipments:Ultrasonic Flaw Detector
Product Details:
Payment & Shipping Terms:
|
Model: | TG-1000C | Display: | FSTN LCD Display With Backlight |
---|---|---|---|
Power Supply: | 3.7V Li-Ion Chargeable Battery | Measuring Range: | 0.50mm To 508mm(0.02" To 20.00") |
Size: | 157mm*78mm*37mm | Weight: | 250g |
Probe Calibration: | Real-time Temperature Compensation Technic Supporting One-time Probe Calibration For Long Term Usage | Gain: | 16 Stages Gain Adjustable |
Memory: | 1000 Datas | Sould Velocity: | 1 ~ 19999 M/s |
Printer: | Optional Portable Bluetooth Thermal Printers | ||
High Light: | portable ultrasonic thickness gauge,through coating thickness gauge |
Portable Ultrasonic Online Velocity Gauge Spheroidization rate tester

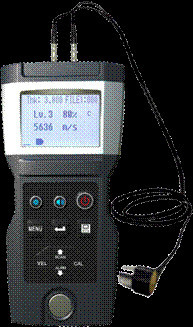

TG-1000C Online Ultrasonic Velocity Gauge
TG-1000C is a portable online measurement & command control ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.
Features:
Main Functions:
Technical Parameters
Sound Velocity Range | 1 ~ 19999 m/s | Thickness Range | See Probe Parameters |
Resolution | 1m/s, 0.001mm / 0.0001inches | Accuracy | See Probe Parameters |
Measuring Period | 4 times per second | Probe Frequency | 2MHz,3MHz,5MHz,7.5MHz |
Calibration Mode | Probe Calibration, Real-time Temperature Compensation | Data Storage | 1000 measurements, including thickness, sound velocity, time, etc. |
Calibration block | 4.000mm(Steel) | Gain Adjustable | 16 Stages |
Measuring Mode | scan, min/max capture, alarm | Thickness measure | Support |
Display | English FSTN LCD Display with backlight | Display Content | Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc. |
Communication | Bluetooth & Mini-USB interface, virtual serial port protocol | Optional portable Bluetooth thermal printers | |
Power Supply | 3.7V Li-Ion chargeable battery | Power off | Timeout power off, low battery power off |
Usage Temperature | -10 ~ 50 °C | Storage Temperature | -30 ~ 60 °C |
Size | 157mm*78mm*37mm | Weight | About 260g |
Shell Material | ABS & PC alloy | Box Material | ABS (IK08 / IP67) |
Probe parameters
Label | 5M Φ10 | 5M PT-08 | 7.5M PT-06 | 2M ZT-12 | 3M GT-12 |
Measure Range (Steel) | 0.75~300 mm | 0.8~225 mm | 0.8~50 mm | 3.0~400 mm | 2.0~200 mm |
Min. Measure Diameter | Ø25 x 3 mm | Ø20 x 1.2 mm | Ø15 x 1.2 mm | Ø30 x 4 mm | Ø25 x 3 mm |
Probe Diameter | 13mm | 11mm | 9mm | 17mm | 15mm |
Probe Frequency | 5MHz | 5MHz | 7.5MHz | 2MHz | 3MHz |
Contact Temperature | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10~310°C |
Version Comparison
Version | Online measurement | Command control |
TG-1000 | x | x |
TG-1000C | √ | √ |
