Pocket Thickness Gauge Ultrasonic Thickness Measurement for Steel plate Pipe wall thickness

Ultrasonic Probe Ultrasonic Thickness Measurement for Chemical Equipment

Special design: inbuilt probe, without cable

Application:

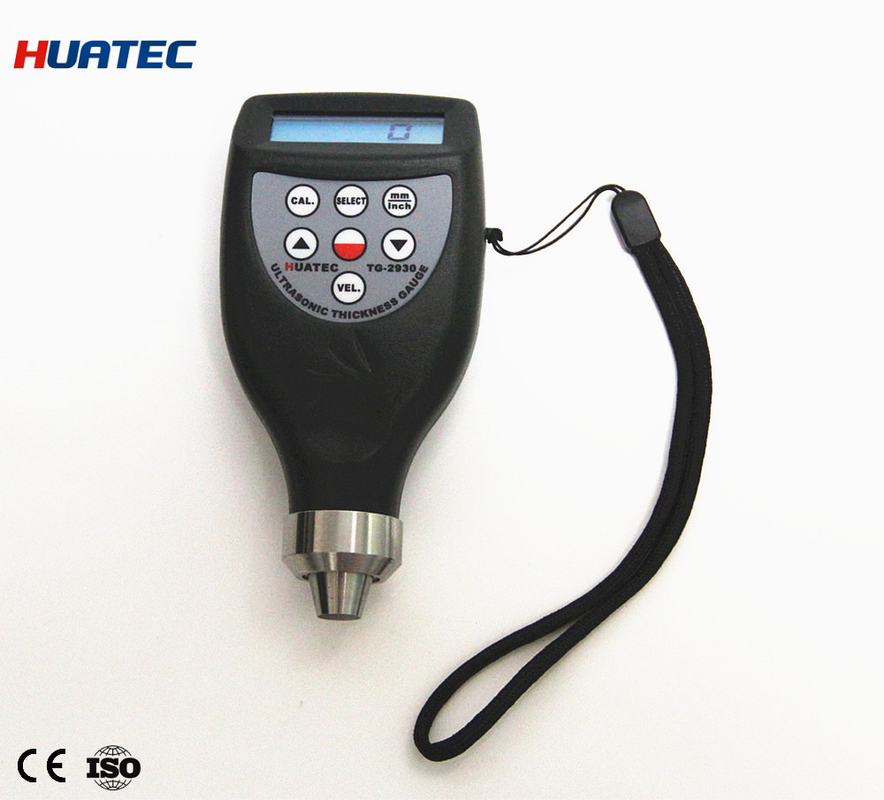

 Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)

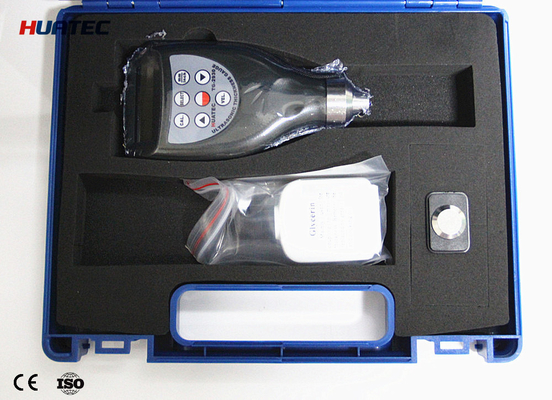

Standard Delivery

Main unit                                                  1
5M Φ8 Transducer  inbuilt               1
Couplant  bottle                                     1
Carrying case                                          1
Instruction manual                               1

Optional Accessories

Cable and Software for RS232C interface

Sound velocity
