Bluetooth Ultrasonic Thickness Gauge measuring wall thickness ultrasonic thickness probe

Bluetooth Ultrasonic Thickness Gauge measuring pipe wall thickness

Application:

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

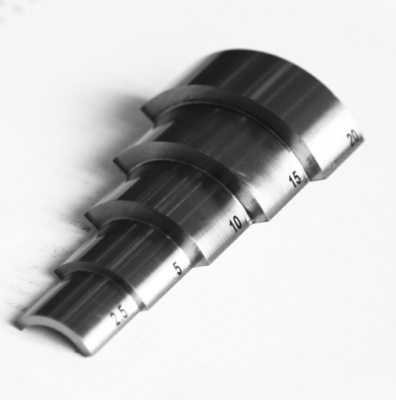

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

Interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)


Standard Delivery

Main unit                                                1
5M Φ8 Transducer  inbuilt                     1
Couplant  bottle                                     1
Carrying case                                        1
Instruction manual                                 1

Optional Accessories

Cable and Software for RS232C interface

Bluetooth

Packaging and Shipping

Packaging: Standard export package, canton

Delivery: 3-7 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.

Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
