Professional Testing Equipments:Ultrasonic Flaw Detector
Product Details:
Payment & Shipping Terms:
|
| Display: | Color 320x240 Pixels Display | A Scan: | LiveSimultaneous Color A-Scan And Thickness Display |
|---|---|---|---|
| B Scan: | Time-based B-Scan Display | Memory: | Stores 100,000 Readings And 1000 Waveform |
| Measuring Range: | 0.50mm To 508mm(0.02" To 20.00"), Depending On Material, Probe And Surface Condition | ||
| High Light: | portable ultrasonic thickness gauge,through coating thickness gauge |
||

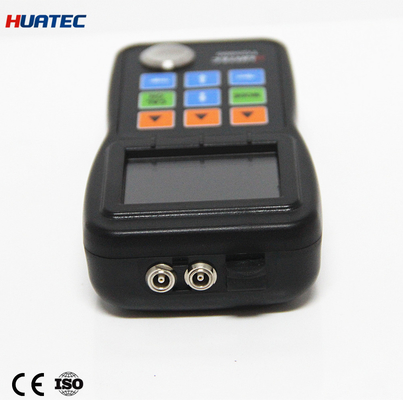

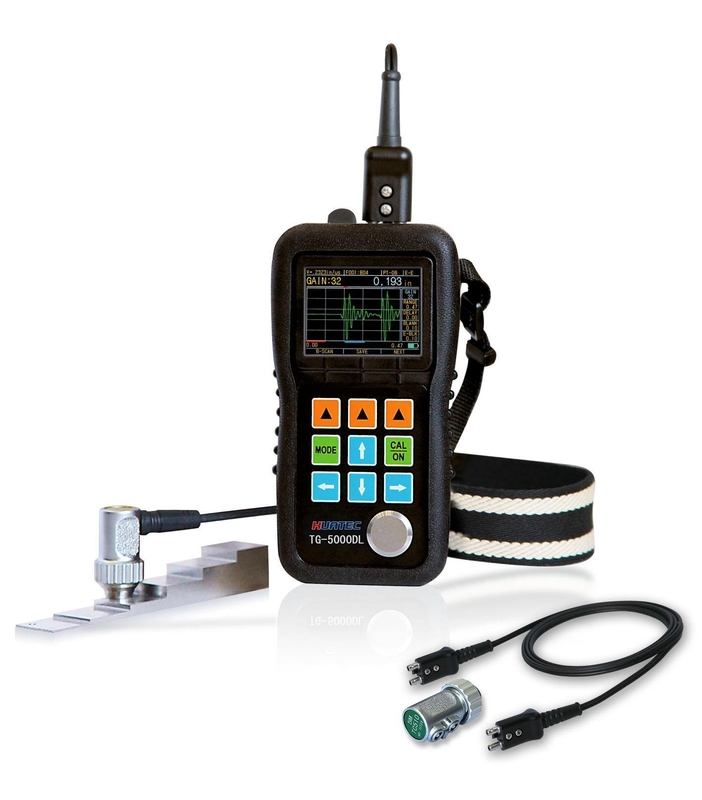

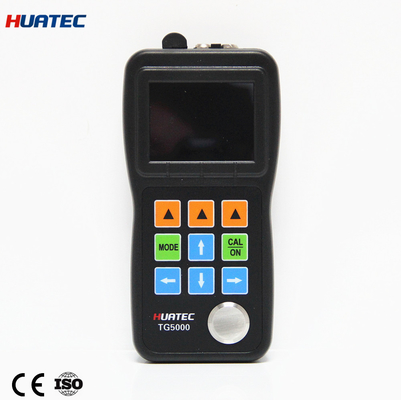

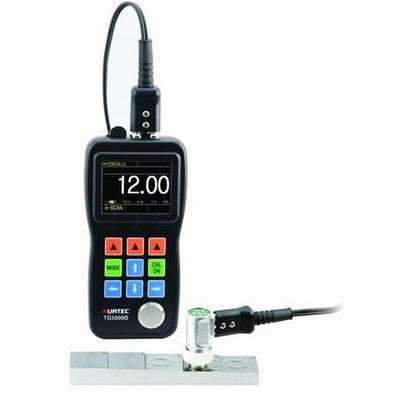

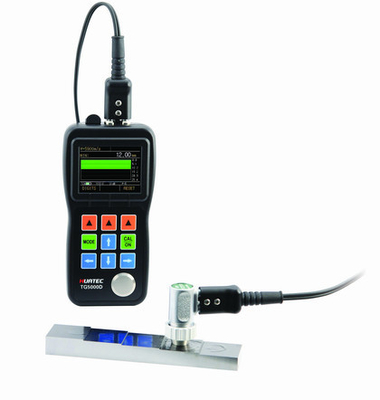

Ultrasonic Wall Thickness Meter ndt Thickness Gauge Ultrasonic Thickness Gages
Features:
Color 320x240 Pixels Display
LiveSimultaneous Color A-Scan and Thickness Display
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes
Time-based B-Scan Display
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings and 1000 waveform
Normal measuring range: 0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition
Echo-Echo mode: 0-8mm (coating thickness), (3-50mm) basic material
Specifications
| Feature | TG-5000 | TG-5000D | TG-5000DL | Data Logger Option |
| Color Display | | | |
|
| Live A-Scan | | | |
|
| Time-based B-Scan | | | |
|
| Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes | | | |
|
| Echo-Echo Mode (Thru Paint & Coatings) | X | | |
|
| Data Logger | X | X | | |
| Data View Software | X | X | | |
| Instrument Specifications | |
| Display Type | 2.4" color OLED, 320X240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition |
| Through Coating Function | Coating thickness:0-8mm;Measuring range:3-50mm |
| MeasuringResolution | Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
| Units | Inch or Millimeter |
| Rectify Modes | RF+, RF-, HALF+, HALF-, FULL |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| MaterialVelocity Range | 500 to 9999m/s (0.0197 to 0.3937in/us) |
| Languages | English |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10°C to +50°C (+10°F to +120°F) |
| Size | 153mm X 76mm X 37mm(H X W X D) |
| Weight | 280g including batteries |
| Data Logger Option Features | |
| Capacity | 100,000 readings,1000 waveforms,400 files |
| File Structure | Grid file |
| Rows X Columns | 21 X 12 |
| CommunicationPort | USB 2.0 (Full Speed ) port |
| Software | Data View PC software |
| TG-5000DL Probe/Transducer Specifications | |||||||
| Model | PT08 | TC510 | PT12 | ZT12 | PT06 | PT04 | GT12 |
| Type | TG-5000 | TG-5000D/DL Standard | Standard | Cast iron | Small tube | Fingertip | High-Temperature |
| Frequency | 5MHz | 5MHz | 5MHz | 2MHz | 7.5MHz | 10MHz | 5MHz |
| Contact Diameter | 11mm | 13.5mm | 13.5mm | 17mm | 8mm | 6mm | 15mm |
| MeasurementRange | 0.8 to | 1.2 to | 1.0 to 200.0mm | 4.0 to | 0.8 to | 0.7 to 12.0mm | 4.0 to |
| TemperatureRange | -10 to 70℃ | -10 to | -10 to 70℃ | -10 to 70℃ | -10 to | -10 to 70℃ | -20 to 300℃ |
| Standard Configurations | |
| Thickness Gauge | 1 |
| Probe | 1 |
| Alkaline Battery | 2 |
| Couplant | 1 |
| Carrying Case | 1 |
| Operation Manual | 1 |
| USB Cable | 1(Only TG-5000DL) |
| Software CD | 1(Only TG-5000DL) |
| Optional Configurations | |
| High-temperature Probe | Cast Iron Probe |
| Small Probe | Mini Probe |
| Probe Cable | Stepped Calibration Block |
| Rubber Sheath | Storage Option(Only TG-5000DL) |
