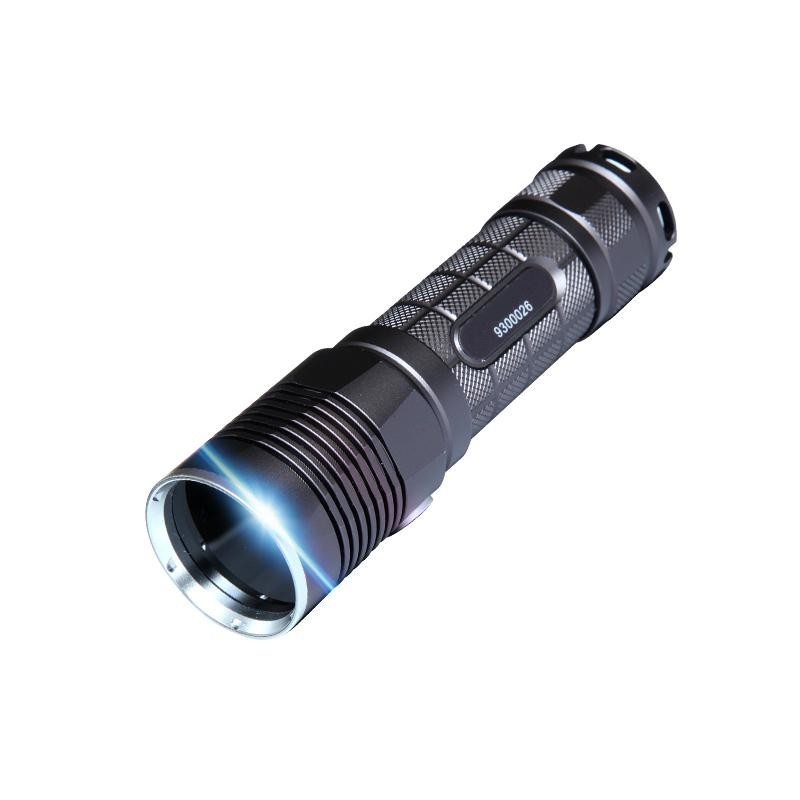

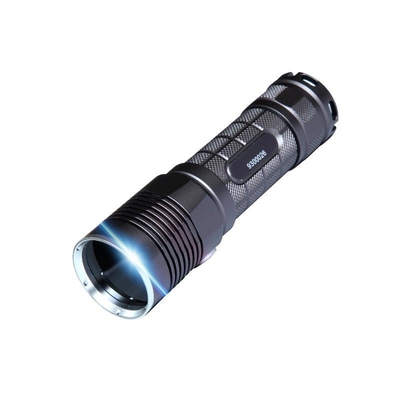

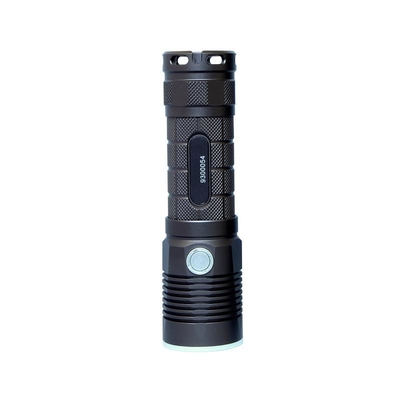

Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529

Name: Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529
Brand: HUATEC
SKU: DG-10 30 50 70
Price: 1 USD
Availability: InStock
Rating: 4.9 (109 reviews)
ISBN: 13773609

Large Image : Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DG-10 30 50 70

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Color:

Black

Lifetime Of Lamp Beads:

20000 Hours

Power Supply:

AC100~240V 50/60Hz

High Light:

dye flaw detection

penetrant test block

Aluminum alloy pocket lamp type LED Ultraviolet Lamp 365nm Ultraviolet band IEC 60529

DG Series pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

Main Application

Fluorescence Penetrant Testing
Fluorescence Magnetic Particle Flaw Detection
Fluorescence Leak Detection
Oil Stain, Blot Testing
Special Gas, Oil and Gas Pipeline Testing
Fluorescence Reflection Detection for Special Materials
Criminal Investigation and Legal Medical Expert Survey
Paper Money Authentication, Jewel Appreciation
Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Characteristic and Performance

HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element,spectrum is pure.
The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.
Quick Start, can reach the maximum illuminance as soon as switch on.
Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
Cold light source makes cold operation, outputs the illuminance lasted and steadily.
Optical filter is black vitaglass.
High strength aviation aluminum alloy shell with anodize surface.
Enhance thermal design, can be used continuous for long time.
Configure dedicated high speed charger for each lamp.
Anti magnetic field interference function makes it possible to work in the strong magnetic field.
Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

4. Technical Parameters

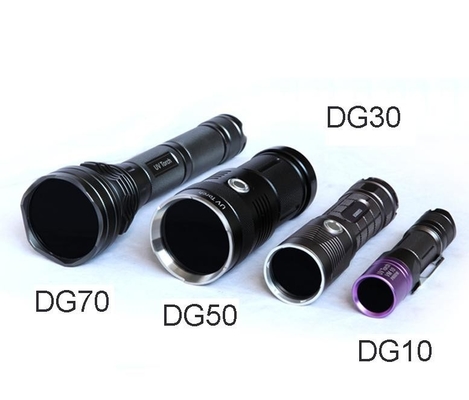

Mode

Parameters

DG-10

DG-30

DG-50

DG-70

Lamp Beads

NICHIA 365nm Ultraviolet band LED Lamp Beads

Lamp Bead Amount

Input Voltage

3.7-4.2V

3.7-8.4V

3.7-4.2V

Output Power

Intensity of Ultraviolet Ray at 38cm Distance

≥10000
uW/cm2

≥13000
uW/cm2

≥20000
uW/cm2

Irradiated Area at 38cm Distance

￠70mm

￠45mm

￠55mm

￠80mm

Diameter of Light Inlet Window

￠22

￠34

￠55

￠50

Battery Model

ICR 18650

ICR 26650

ICR 18650

Battery Capacity

2600mAh

4800mAh

2600mAh

Number of Battery

Charging Time

≥5H

≥6H

≥7H

≥5H

Working Hours

≥4H

≥5H

≥8H

≥5H

Battery Life

More than 500 time for fully charge and discharge

Outline Dimension

￠28 mm

￠40 mm

￠62 mm

￠60 mm

￠24 mm

￠33 mm

￠34 mm

￠50 mm

128 mm

144 mm

240 mm

143 mm

Weight(including Battery)

140g

240g

520g

610g

Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529 0

Diagram of Outline Dimension
Configuration List

	DG-10	DG-30	DG-50	DG-70
Main Device	1	1	1	1
Battery	1	1	2	4
Charger	1	1	1	1
Suit case	1	1	1	1
Operating Manual	1	1	1	1
Certification	1	1	1	1
Warranty Card	1	1	1	1
Packing List	1	1	1	1

Optional Configuration

	DG-10	DG-30	DG-50	DG-70
Protective Glass	1	1	1	1
Triangle Holder				1

Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529 1
