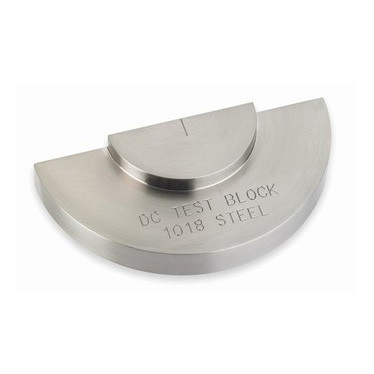

DC Distance ASTM E164 OEM Ut Calibration Blocks

Name: DC Distance ASTM E164 OEM Ut Calibration Blocks
Brand: HUATEC
SKU: DC ultrasonic calibration block
Price: 1 USD
Availability: InStock
Rating: 4.8 (169 reviews)
ISBN: 13773228

Large Image : DC Distance ASTM E164 OEM Ut Calibration Blocks

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DC ultrasonic calibration block

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Material:	Carbon Steel, Stainless Steel, Duplex Stainless Steel 2205,aluminum 7075	Standard:	ASTM E164
Calibration Certificate:	Included	Case:	Included
OEM:	Yes	Product Name:	ASME Ultrasonic Calibration Blocks
High Light:	DC Distance ut calibration blocks , ASTM E164 ut calibration blocks , OEM ut calibration blocks

DC distance ultrasonic Calibration Blocks Ultrasonic calibration blocks ultrasonic calibration blocks uk

DC calibration block

DC distance calibration block, American petroleum institute standard block, belongs to the API inspection standard block series and engraved block machine series, model with API - 1 # block 1 slot hole, slot hole 1, 2 to the API - 9 # 1 slot hole, block, 2 slot 1 hole, including DC distance calibration block, SC type sensitivity calibration, block, DSC distance and sensitivity calibration block also belong to this standard

AWS-type block used for shear wave distance calibration. Contains a 1.0” radius overlaying a 2.0” radius on a 180︒segment.In accordance with ASTM E164 and BRR/AWS X-1 specifications.

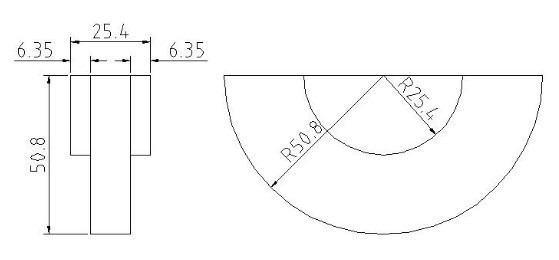

Dimensions: 2.0”radius section is 0.2”thick,1.0” radius section si 1.0” thick.

Metric version available also.

Material: carbon steel 1018, stainless steel 304/316, duplex stainless steel 2205,aluminum 7075

Mark: OEM can be done

DC Distance ASTM E164 OEM Ut Calibration Blocks 0
