Straight / Angle Beam Probe UT probe UT transducer UT With 2MHz 4MHz 6MHz

Name: Straight / Angle Beam Probe UT probe UT transducer UT With 2MHz 4MHz 6MHz
Brand: HUATEC
SKU: HFD
Price: 40 USD
Availability: InStock
Rating: 4.6 (139 reviews)
ISBN: 11532916

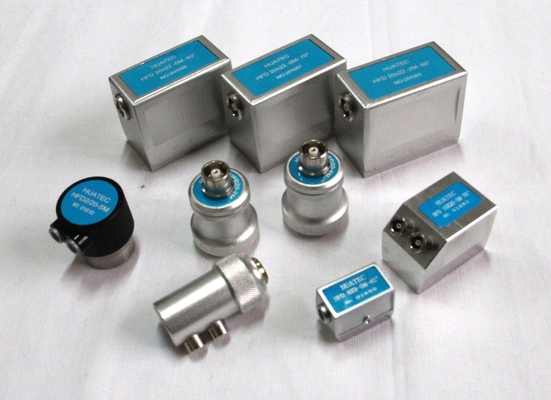

Large Image : Straight / Angle Beam Probe UT probe UT transducer UT With 2MHz 4MHz 6MHz

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HFD

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	40-60USD
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

High Light:

ultrasonic flaw detectors

ultrasonic flaw detection

Straight / Angle Beam Probe Ultrasonic Flaw Detector, UT With 2MHz / 4MHz / 6MHz

Ultrasonic Transducer

Probe type	Designation	Angle	Transducer element size [mm]	Frequency [MHz]

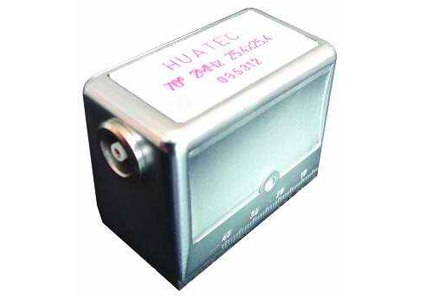

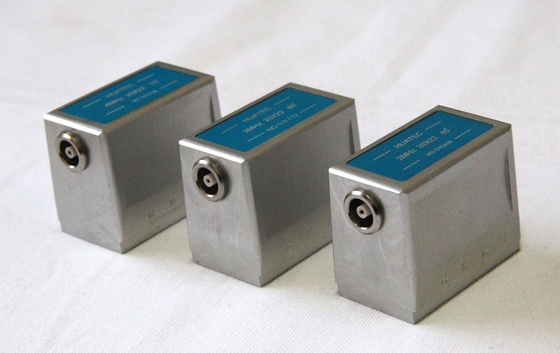

angle probe	HFD 9x8-2M-35	35°	8x9	2 MHz
	HFD 9x8-2M-45	45°	8x9	2 MHz
	HFD 9x8-2M-60	60°	8x9	2 MHz
	HFD 9x8-2M-70	70°	8x9	2 MHz
	HFD 9x8-2M-80	80°	8x9	2 MHz
	HFD 9x8-4M-35	35°	8x9	4 MHz
	HFD 9x8-4M-45	45°	8x9	4 MHz
	HFD 9x8-4M-60	60°	8x9	4 MHz
	HFD 9x8-4M-70	70°	8x9	4 MHz
	HFD 9x8-4M-80	80°	8x9	4 MHz

angle probe	HFD 22x20-2M-35	35°	20x22	2 MHz
	HFD 22x20-2M-45	45°	20x22	2 MHz
	HFD 22x20-2M-60	60°	20x22	2 MHz
	HFD 22x20-2M-70	70°	20x22	2 MHz
	HFD 22x20-2M-80	80°	20x22	2 MHz
	HFD 22x20-4M-35	35°	20x22	4 MHz
	HFD 22x20-4M-45	45°	20x22	4 MHz
	HFD 22x20-4M-60	60°	20x22	4 MHz
	HFD 22x20-4M-70	70°	20x22	4 MHz
	HFD 22x20-4M-80	80°	20x22	4 MHz

Probe type	Designation	Transducer element* diameter[mm]	Frequency[MHz]

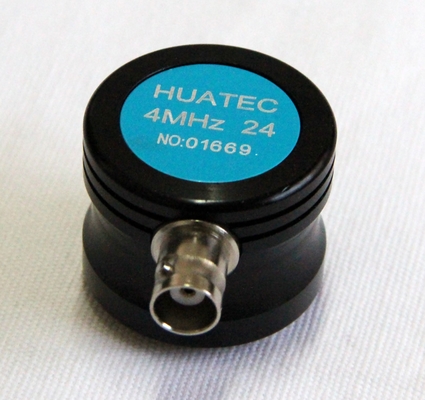

Standard straight probe	HFD 10-2M	Ø 10	2 MHz
	HFD 10-4M	Ø 10	4 MHz
	HFD 10-6M	Ø 10	6 MHz
	HFD 20-2M	Ø 20	2 MHz
	HFD 20-4M	Ø 20	4 MHz
	HFD 20-6M	Ø 20	6 MHz

Probe type	Designation	Transducer element* diameter[mm]	Frequency[MHz]
Dual straight probe	PQ 2/10-2M	Ø 10	2 MHz
	PQ 2/10-4M	Ø 10	4 MHz
	PQ 2/10-6M	Ø 10	6 MHz
	PQ 2/20-2M	Ø 20	2 MHz
	PQ 2/20-4M	Ø 20	4 MHz
	PQ 2/20-6M	Ø 20	6 MHz

Probe type	Designation	Angle	Transducer element* diameter[mm]	Frequency[MHz]

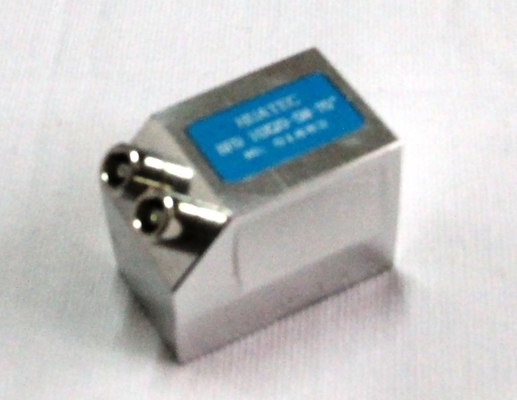

Dual angle probe	HFD 13x8-2M-60	60°	8x13	2 MHz
	HFD 13x8-2M-70	70°	8x13	2 MHz
	HFD 20x10-2M-60	60°	10x20	2 MHz
	HFD 20x10-2M-70	70°	10x20	2 MHz
	HFD 13x8-5M-60	60°	8x13	5 MHz
	HFD 13x8-5M-70	70°	8x13	5 MHz

Note:

1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc.

2.We offer all kinds of probe with customer request.

Testing Curve Report for a Transducers (optional by order)
