Professional Testing Equipments:Ultrasonic Flaw Detector
Product Details:
Payment & Shipping Terms:
|
High Light: | ultrasonic flaw detectors,ultrasonic flaw detection |
---|

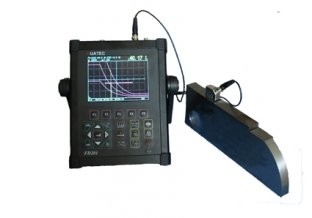

Digital Ultrasonic Flaw Detector FD201, UT, flaw detector, ultrasonic testing equipment, ndt, ultrasonic detector,portable ultrasonic flaw detector
·Automated calibration Automated gain

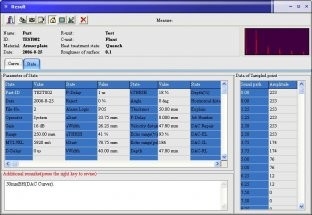

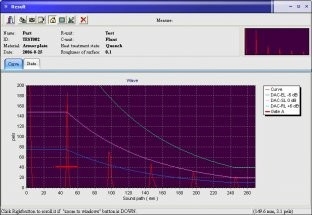

·Automated make video of test process and play ·DAC AVG & B scan, AWS function, 6dB DAC ·High-speed capture and very low noise ·Solid metal housing (IP65) ·High contrast viewing of the waveform from bright ·Powerful pc software and reports can be export to excel Features :
· Automated calibration of transducer Zero Offset and/or Velocity ;
· Automated gain, Peak Hold and Peak Memory; · Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф); · Automated switch three staff gauge ((Depth d, level p, distance s); · 100 independence setup, any criterion can be input freely, we can work in the scene without test block; · Big memory of 300 A graph and 30000 thickness value. · B scan; · RS232 port/ USB, communication with pc is easy; · The embeded software can be online updated; · Li battery, continue working time up to 10 hours; · Other assistant function; · Display freeze; · Automated echo degree; · Angles and K-value; · Lock and unlock function of system parameters; · Dormancy and screen savers; · Electronic clock calendar ; · Two gates setting and alarm indication; · High-speed capture and very low noise; · DAC, AVG, B Scan ; Solid metal housing (IP65); · Automated make video of test process and play; · Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
|
|||||||||||||||||||||||||||||||||||||||||||
Standard Delivery: Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case
Additional Accessories:
Data managing software for digital ultrasonic flaw detector
Data managing cables RS232 for digtial ultrasonic flaw detector
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 01)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
|
