Home ProductsPortable Hardness Tester

Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363

Certification
China HUATEC GROUP CORPORATION certification
China HUATEC GROUP CORPORATION certification
Customer Reviews
huatec hardness tester, very good quality,we are very satisfied with the portable hardness tester RHL-50. Kumaren Govender Sotuth Africa

—— Kumaren Govender

I'm Online Chat Now

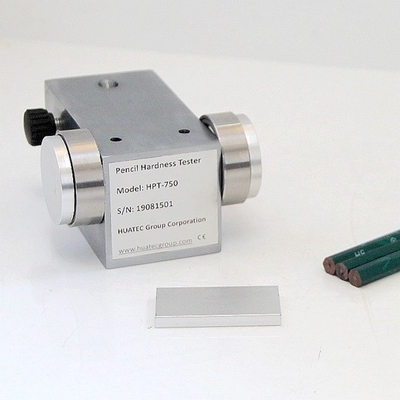

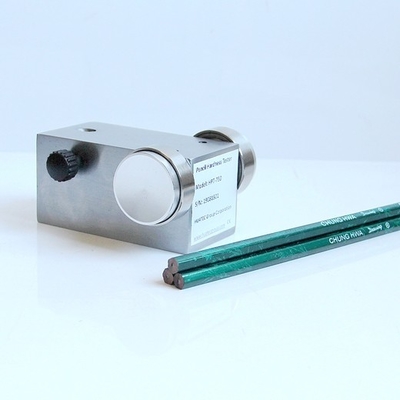

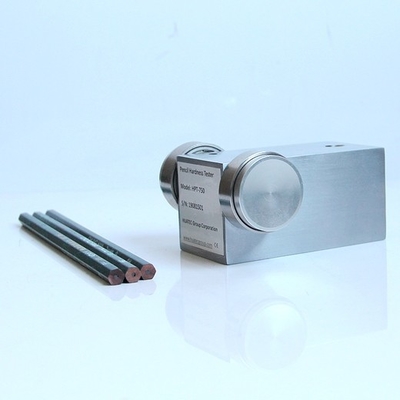

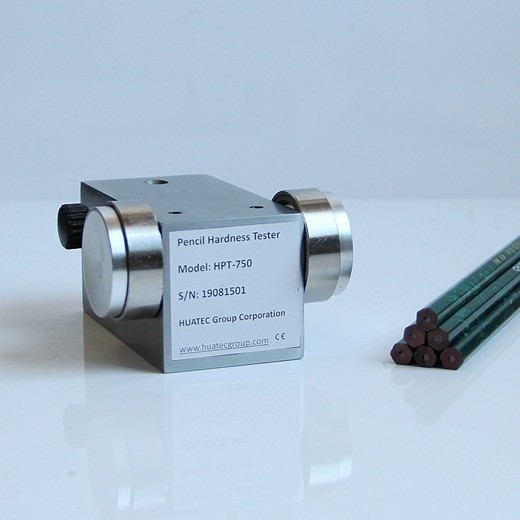

Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363

Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363
Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363 Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363 Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363 Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363 Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363

Large Image :  Precision Pencil Hardness Test Kit 1 Mm / Sec Scratch Speed ASTM D3363

Product Details:

Place of Origin: China
Brand Name: HUATEC
Model Number: HPT-750

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: in carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Pencil Hardness Tester Hardness Class: -4B-3B-2B-B-HB-F-H-2H-3H-4H-5H-6H.
Pressure Of Pencil Tip: 1000/750/500g Test Surface Contact: Roller, Pencil Tip
Scratch Speed: 1 Mm/sec Warranty: 12 Months
High Light:

hardness testing machine

,

metal hardness tester



Pencil Hardness Tester

Product Introduction:

Through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness.



Introduction:

1301 Pencil Tester complies with the requirements of ASTM D3363 and ISO 15184 standard, through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness. Recommend to apply on the smooth film surface.Use variety of different hardness pencils,the angle between pencil and the coated surface is 45°, scratch on the coated surface under a certain of force, the scratch resistance hardness of the coating is the pencil hardness which just scratched the coating.

Technical Specification:

Pressure of pencil tip: 1000/750/500g
The angle between pencil and film surface is 45°
Three points are touched on the tested surface (roller, pencil tip)

Built-in spirit bubble, convenient to check level when tester is working

Scratch Speed: 1 mm/sec
Mitsubishi pencils are available upon request

Order Information:

1301/500 Pencil Hardness Tester (500g)
1301/750 Pencil Hardness Tester (750g)
1301/1000 Pencil Hardness Tester (1000g)

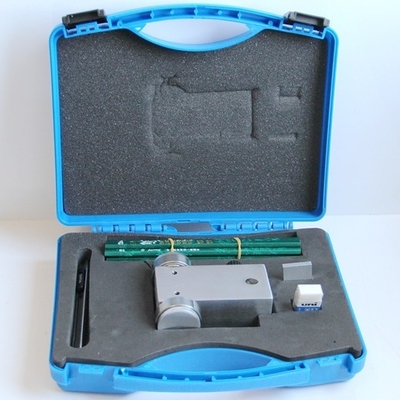

Packing List:

1. Pencil Tester, Body

2. 1 Set of Pencils ( 12 ) :-4B-3B-2B-B-HB-F-H-2H-3H-4H-5H-6H.

3 . Special Pencil Sharpener

4 . Abrasive Paper, 400 grade grit.

5. Spirit bubble

6. Calibration Certificate

Pencil Hardness Tester
