Professional Testing Equipments:Ultrasonic Flaw Detector
|
Product Details:
Payment & Shipping Terms:
|
| Measure Range: | 0～4.5D | Repetitive Error: | ±0.01D |
|---|---|---|---|
| Display: | Decode Screen Display | Battery: | 2.2Ah |
| Recharge Time: | ≤ 2h | Standby Time: | ≥ 24h（In Fact 28h） |

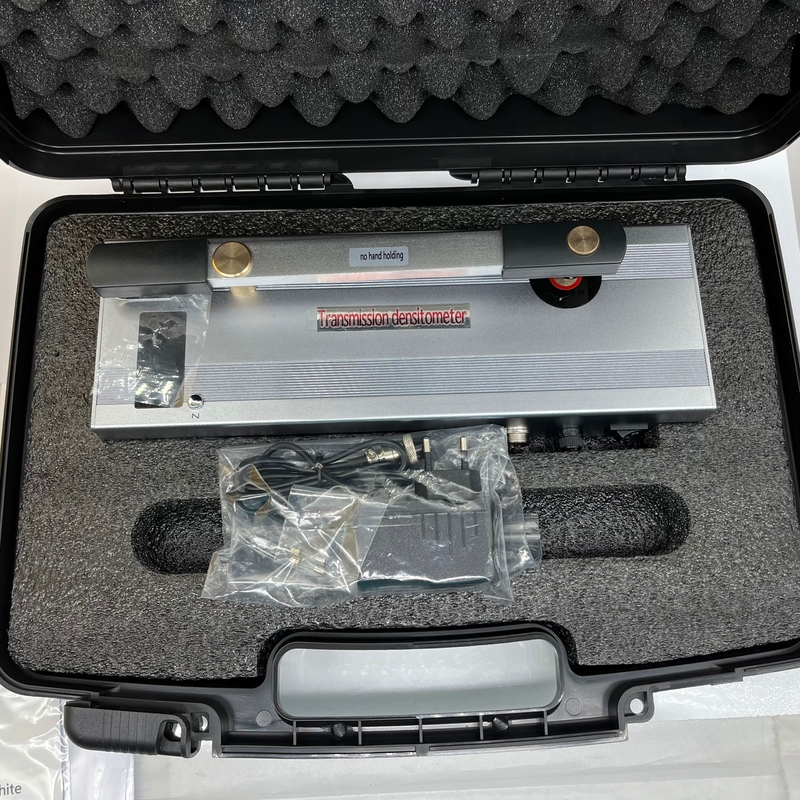

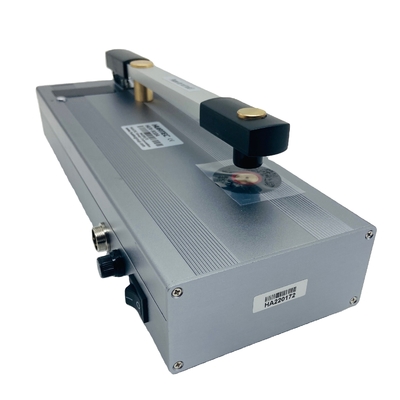

HUA-910 Black-and-white densitometer
HUA-910 series Portable black-and-white transmittance densitometer has been rigorously debugged and tested when it leaves the factory.After 5 minutes of preheating, users can make formal measurements only by pressing the zero-setting button.The matching standard density sheet can facilitate the user to verify the accuracy of the instrument byhimself.
Technique parameter
| 1 Measure range |
HUA-910:0～4.5D HUA-910A:0-5.0D |
| 2Measure area | ф2mm(Optical aperture diameter) |
| 3Repetitive error | ±0.01D |
| 4Deviation | (0.00D～3.00D)±0.02D |
|
(3.00D～4.50D)±0.03D (4.50D～5.00D)±0.04D |
|
| 5Display | Decode Screen Display |
| 6Adapter | 8.4V--1000mA |
| 7Battery | 2.2Ah |
| 8Recharge time | ≤ 2h |
| 9Standby time | ≥ 24h(In fact 28h) |
| 10Working time | ≥ 4h(In fact 5h) |
| 11Consumption | ≤ 4W |
| 12Working environment | 0～40℃, humidity≤ 85% |
| 13Size | 51×21×42cm |
| 14Weight | 3.5Kg |
HUA-910 series portable black-and-white transmittance densitometer can measure both density value and density difference value.
The densitometer uses a high stability light source, uses a special light head structure, and uses high precision detection technology in the circuit part, which greatly improves the ability of resisting light and electric interference.Improving the Measuring Accuracy of the Instrument by Special Fitting Technology.The newly added viewing area can facilitate users to locate the checkpoint and measurement point accurately.The instrument adopts metal shell, which can effectively shield the external electromagnetic interference and ensure the stability of the instrument.
HUA-910A Portable black-and-white transmittance densitometer is an enhanced type of HUA-910which can measure the transmission density within 5.0D, is also of reference value for those larger than 5.0D.HUA-910A Portable black-and-white transmission densitometer is an ideal instrument for X-ray quality analysis of pressure vessels, hulls, chemical industry, bridges, hospitals, etc.
Standard configuration
1. Host 1pc
2. Power cable1pc
3. Density step strip1pc
4. Fuse 1pc
5. Instruction manual 1pc
6. Calibration certificate 1pc
7. Warranty card 1pc
