| Item: | HAP-1000XP | Station: | Single Disc |
|---|---|---|---|
| Rotate Speed: | 50-1000 RPM Reverse Rotation Can Be Switched | Sample Plate Speed: | 30-200 RPM Reverse Rotation Can Be Switched |
| Manual Mode: | You Can Select 30 Groups Of Parameters, Each Set And Invoked Separately |

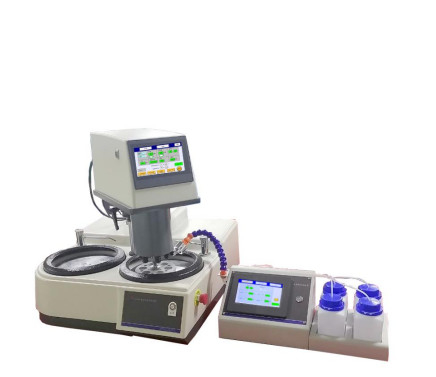

HAP-1000XP Fully automatic metallographic grinding and polishing machine
Single sample was loaded independently
Center loading of sample tray
Six samples can be loaded at one time, and a four-channel automatic drip device (optional) can be configured to complete the grinding and polishing process automatically.
| Item | HAP-1000XP | ||
| Station | Single disc | ||
| Working disc diameter | Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system | ||
| Rotate speed | 50-1000 RPM reverse rotation can be switched | ||
| Sample plate speed | 30-200 RPM reverse rotation can be switched | ||
| Manual mode | You can select 30 groups of parameters, each set and invoked separately | ||
| Automatic mode | 30 sets of process (process), each set of process contains 10 steps of process parameters (from process 1 to process 10 automatically, each step has an independent set of parameters) | ||
| Sample holder | 30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized) | ||
| Grinding head locking mode | Electromagnetic automatic lock | ||
| Drip device (optional) |
4 channel Grinding and polishing machine controls the drip operation |
||
| Working air source pressure | More than 0.6MPa | ||
| Motor power | 0.75 Kw | ||
| Power supply | AC220V, 50/60Hz, 2KW | ||
| Overall dimensions | 760 x 470 x 700mm | 760 x 730 x 700mm | |
| Weight | 63kg | 74kg | |
Optional grinding quantity control fixture rotation is 0.02mm.
