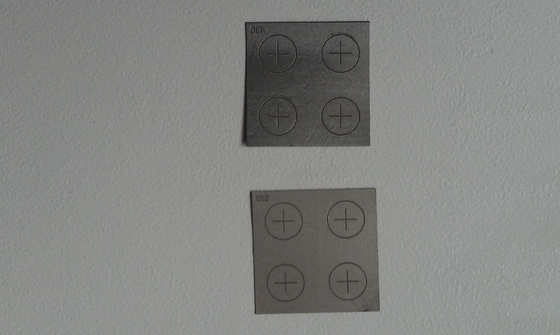

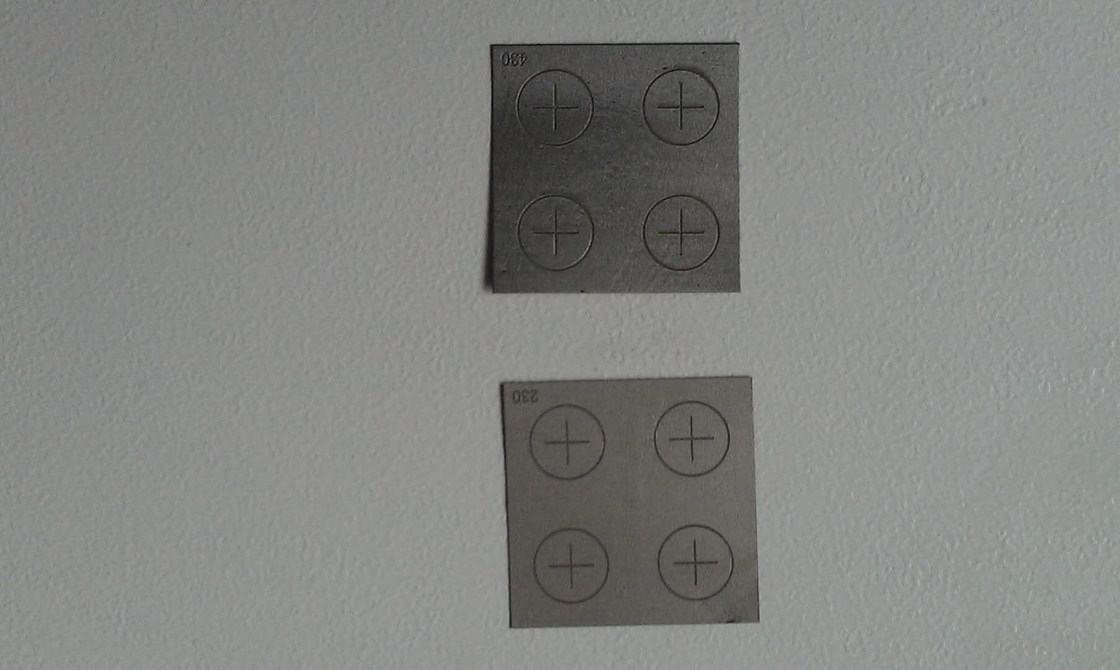

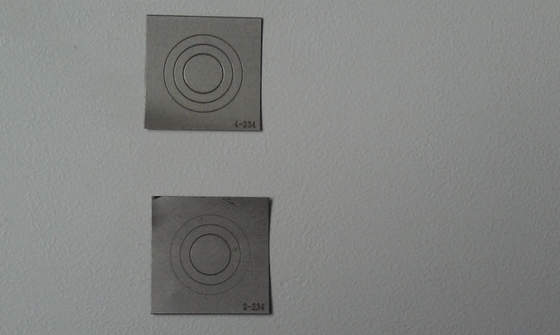

Product: Test shim of magnetic particle inspection Type: CX-430
Test quality: sample Quantity: 3 pieces
Test standard: JB/T6065-2005,ASME-2007 PAGE Number V Lot number: 2022
Inspection items | The condition, method and demand of the test | Inspection demand | |
Color | Metal surface presents bright silver, no rust.no scratch, no corrosion and so on | Passed muster | |
Planeness | Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.8um | Passed muster | |
The size of sheet iron and cutting groove |

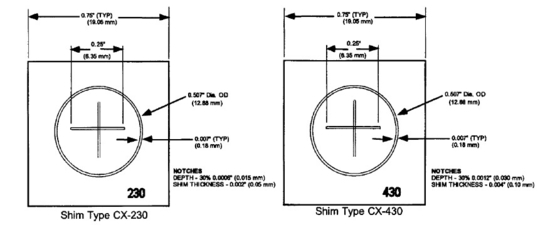

The side length of test piece tested by milscale is 0.75in×0.75in.the average thickness of test piece CX-430 is 0.004in .The artificial defect symbol “o”and symbol“+”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“o”is 0.507in,symbor“+”is 0.25in. The thickness of test piece CX-430 is 0.004in.the groove depth is 0.0012in, the groove width is 0.007in.
|
Passed muster | |
Quality |
The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate. The analytic result of raw materials accords with the rule of GB6985, |
Passed muster | |
