HUATEC Wet Film Thickness Gauges(Comb-shape）

Name: HUATEC Wet Film Thickness Gauges(Comb-shape）
Brand: HUATEC
SKU: 20-370 μm
Price: 1 USD
Availability: InStock
Rating: 5 (184 reviews)

Large Image : HUATEC Wet Film Thickness Gauges(Comb-shape）

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	20-370 μm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500Pcs

Contact Now

Detailed Product Description

Measuring Range:	SHG~100

HUATEC Wet Film Thickness Gauges(Comb-shape)

Detailed Product Description:

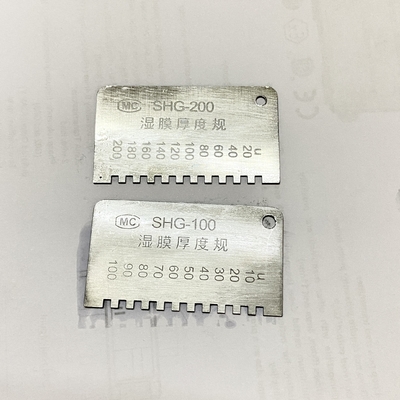

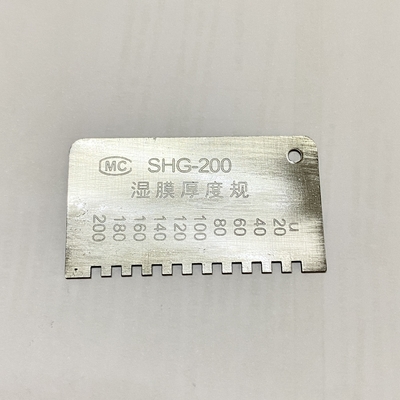

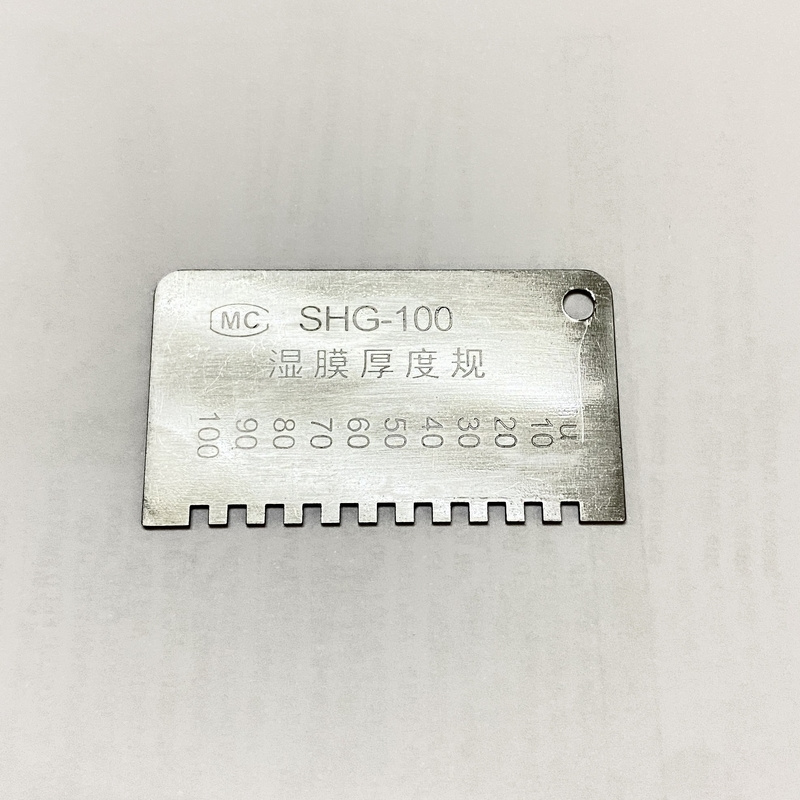

The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a string(not supply)can be attached for hooking

HUATEC Wet Film Thickness Gauges(Comb-shape） 0

All Wet Film Thickness Gauges come standard with 10 gaps with inscriptions of the thickness at the side of each gap.It is recommended to replace a new gauge if there are chips, crack or uneven at the gap(s)of the gauge

Main Technical Parameters:

Type: SHG~100 10-100um(@10um)

SHG~200 20-200um(@20um)

SHG~700 250~700um(@75um)

SHG~750 50~950um(@50um)

Dimensions (for 1 & 2):65(L)* 36(B)*1.5(T)mm

(for 3 & 4):65(L)* 43(B)*1.5(T)mm

Weight:approx.22g(for 1&2), 33g(for 3&4)
