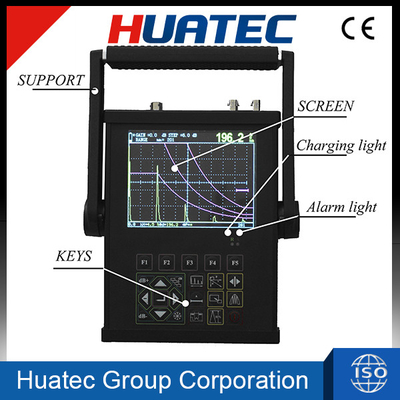

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface
Features :
· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)
· Automated switch three staff gauge ((Depth d, level p, distance s)
· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
· Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 300 A graph and 30000 thickness value
· Automated gain and gain scan
· Automated make video of test process and play
· Peak Hold and Peak Memory
· B scan
· Powerful pc software and reports can be export to excel
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours
Other Assistant Function :
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;
Specification :
Title
|
Parameter
|
Title
|
Parameter
|
Measuring Range(mm)
|
2.5 ~ 10000
|
Measurement Mode
|
Single, Dual, Thru
|
Vertical Linearity Error
|
≤3%
|
Reject
|
0~80%
|
Horizontal Linearity Error
|
≤0.1%
|
Pulse Displacement(μs)
|
-20 ~ +3400
|
Sensitivity Leavings
|
≥62dB
|
Zero(μs)
|
0.0 ~ 99.99
|
Dynamic range
|
≥34dB
|
Port Type
|
BNC
|
Resolving Power
|
≥36dB
|
Operating Temperature (℃)
|
-20~50
|
Frequency Range(MHz)
|
0.5 ~ 20
|
H×W×D(mm)
|
210×156×40
|
Gain(dB)
|
0 ~ 110
|
Weight(kg)
|
1.0
|
Material Velocity(m/s)
|
1000 ~ 13000
|
|
|
Sandard Delivery:
Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 01)
Probe connection cable (BNC to Lemo 00)
Instruction manual
Carrying case
Additional Accessories:
Data managing software
Data managing cables RS232
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe Lemo 00-Lemo 01)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
--------------------------------------------------------------------------------------------------------------
