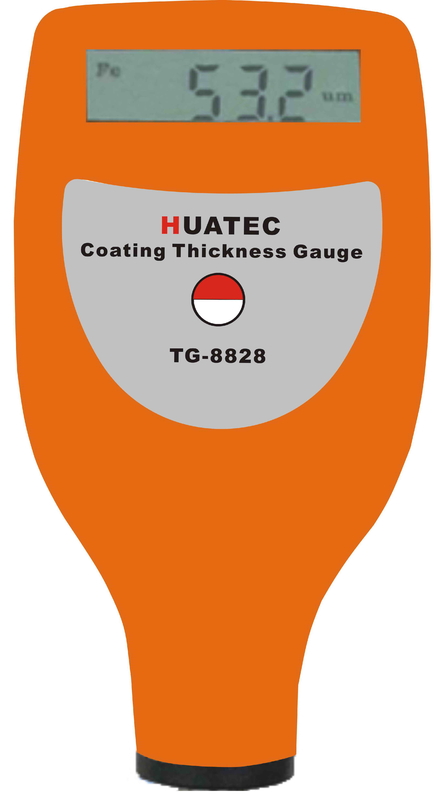

Dry Film Coating Thickness Gauge Elecronic TG8828 For Car Industry

Dry Film Coating Thickness Gauge Elecronic TG8828 For Car Industry
Dry Film Coating Thickness Gauge Elecronic TG8828 For Car Industry

Large Image :  Dry Film Coating Thickness Gauge Elecronic TG8828 For Car Industry

Product Details:

Place of Origin: Beijing
Brand Name: Huatec
Certification: CE, GOST
Model Number: TG-8828

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package
Delivery Time: 3-5 working days
Payment Terms: Paypal / Western Union / TT
Supply Ability: 1000
Detailed Product Description
Coating: Painting Substrate: Steel
Type: Coating Production Line

Detailed Product Description



Dry Film Coating Thickness Gauge Elecronic TG8828 For Car Industry

Description:
In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolutio: 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Standard Delivery of coating thickness gauge TG8828FN:
Main unit(1250um)                        1
F type probe                                  1
N type probe                                 1
F calibration base set                    1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                        1

Optional Accessories of coating thickness gauge TG8828FN:
Cable and software for RS-232C
Customized testing range


--------------------------------------------------------------------------------------------------------------
