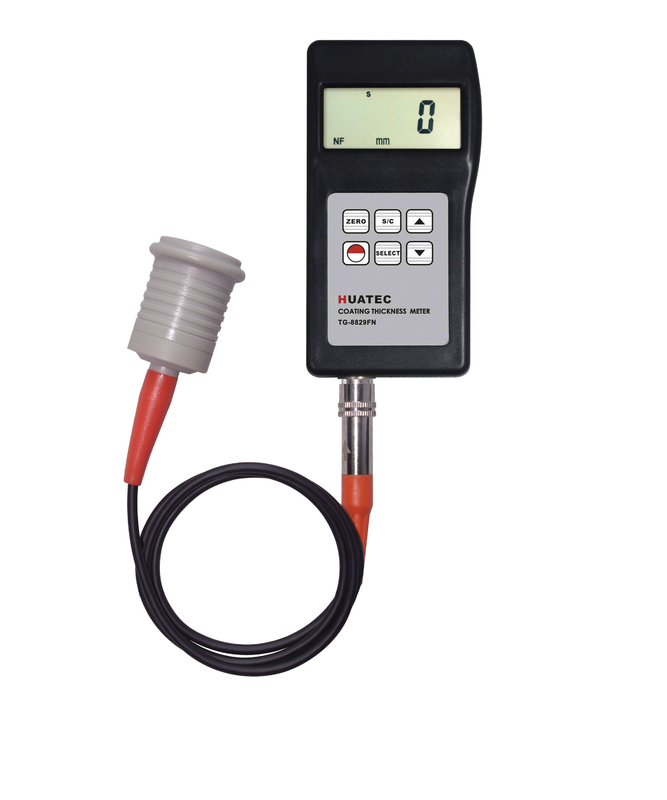

12 mm Coating Thickness Gauge TG8829F For Non Conductive Coating Layers

Name: 12 mm Coating Thickness Gauge TG8829F For Non Conductive Coating Layers
Brand: Huatec
SKU: TG-8829F
Price: 1 USD
Availability: InStock
Rating: 4.5 (123 reviews)
ISBN: 9278693

Large Image : 12 mm Coating Thickness Gauge TG8829F For Non Conductive Coating Layers

Product Details:

Place of Origin:	Beijing
Brand Name:	Huatec
Certification:	CE, GOST
Model Number:	TG-8829F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Carton Package
Delivery Time:	3-5 working days
Payment Terms:	Paypal / Western Union / TT
Supply Ability:	1000

Contact Now

Detailed Product Description

Coating:	Plating	Substrate:	Steel
Type:	Coating Production Line

Detailed Product Description

12 mm Coating Thickness Gauge TG8829F For Non Conductive Coating Layers

Description:

With separate probe(s)
Function: TG-8829F (ferrous substrate)

Operating principle: magnetic induction

Measuring range:0-12000um/

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 30mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

Standard Delivery of TG8829F:
Main unit(1250um) 1
F type probe 1
F calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1

Optional Accessories
Cable and software for RS-232C

Customized testing range

--------------------------------------------------------------------------------------------------------------
