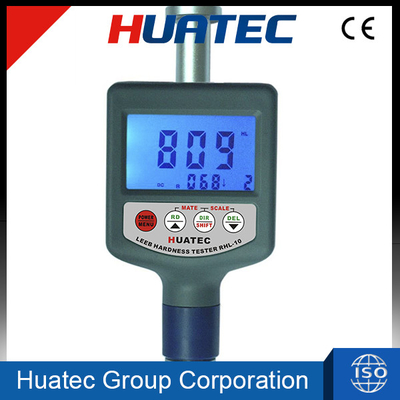

12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10

Certification
China HUATEC GROUP CORPORATION certification
China HUATEC GROUP CORPORATION certification
Customer Reviews
huatec hardness tester, very good quality,we are very satisfied with the portable hardness tester RHL-50. Kumaren Govender Sotuth Africa

—— Kumaren Govender

I'm Online Chat Now

12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10

12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10
12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10 12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10 12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10

Large Image :  12.5mm LCD with back light 200 - 900L Portable Leeb Hardness Tester RHL10

Product Details:

Place of Origin: Beijing
Brand Name: Huatec
Certification: CE, GOST
Model Number: RHL-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package
Delivery Time: 3-5 working days
Payment Terms: Paypal / Western Union / TT
Supply Ability: 1000
Detailed Product Description

Detailed Product Description


Main Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
* Large memory could store 250 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.


Applications
* Die cavity of molds
* Inspection of bearing and other mass produced parts on a production line
* Failure analysis of pressure vessel, steam generator and other equipment
* Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces.
* Testing surface of a small hollow space
* Material identification in the warehouse of metallic materials
* Rapid testing in large range and multi-measuring areas for large-scale work piece


Main Features of portable leeb hardness tester RHL10
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
* Large memory could store 250 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.


Technical Specifications
Display: 12.5mm LCD with back light
Accuracy: Display error ±0.8% at LD=900
Measuring range: 200-900L
Conversion: HL-HRC-HRB-HB-HV-HSD
Materials: 9 different common materials
Interface:  RS232C
Memory: 250 data can be stored and re-readable
Impact device: Impact Device D  Weight: 75g
Power supply: 2x1.5V AAA size battery
Dimension: 146×65×36mm
Weight: 130g (not including batteries)
Working temp.: - 10℃~+50℃ Storage temp.: - 30℃~+60℃; Relative humidity: ≤90%

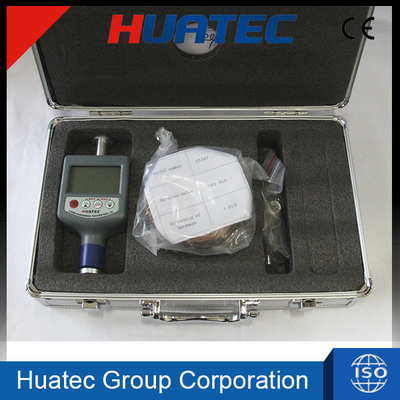

Standard delivery of portable leeb hardness tester RHL10
Main unit
Impact Device type D inbuilt
Test block with HLD value
Charger
Nylon brush
Small supporting ring
Calibration Certificate
Instruction manual
Warranty card

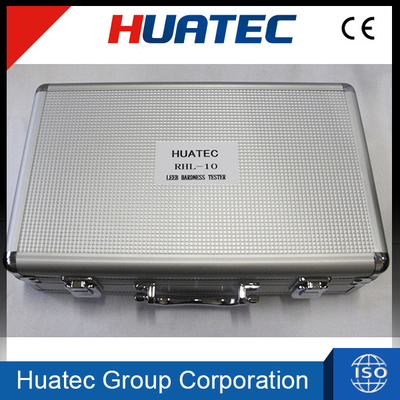

Carrying case


Optional accessories of portable leeb hardness tester RHL10
Normal and special type support rings (14pcs)
Other test block (High, medium and low value))
Data View Software
USB&RS232 Communication cable
Impact body
Impact ball tip
Tools for changing the ball tip

--------------------------------------------------------------------------------------------------------------
