Product Introduction: Fineness of Grind Gauge is manufactured according to the GB/T1724, ISO1524 standard.
Introduction:
Fineness of Grind Gauge is manufactured according to the GB/T1724, ISO1524 standard.
Application:
Paint, plastic, pigment, printing ink, paper, ceramic, pharmaceutical, food and many other industries.
Technical Specification:
Material: Stainless steel
Order Information:
| Item | Order No. | Effective Groove Size (L×W) (mm) |
Measurement Range(μm) |
Dimension (mm) |
Division Value |
Unit | Number of Grooves |
| Single- Channel Grind Gauge |
1903/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | μm | 1 |
| 1903/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | μm | 1 | |
| 1903/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | μm | 1 | |

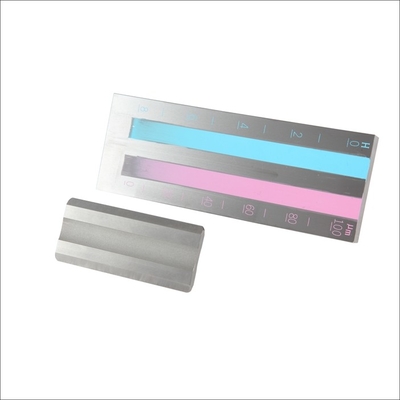

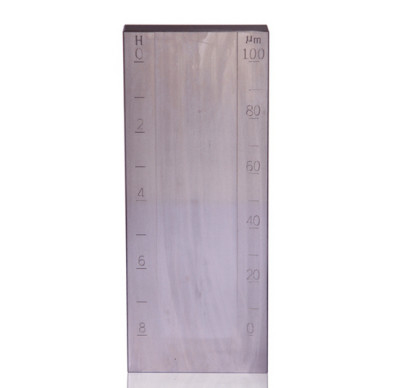

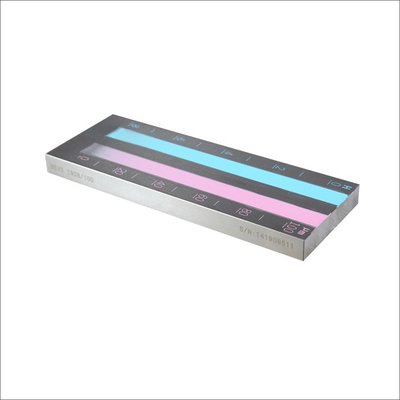

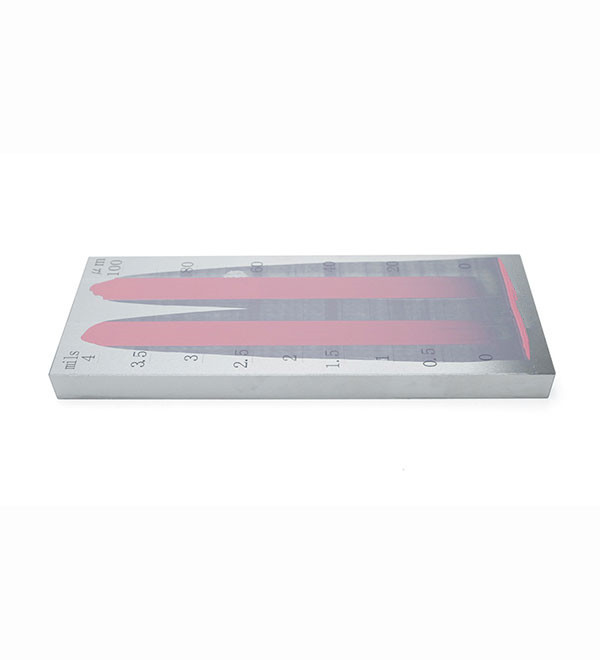

| Double- Channel Grind Gauge |
1908/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | H &μm | 2 |
| 1908/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | H &μm | 2 | |
| 1908/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | H &μm | 2 | |
| Wide Single Channel Grind Gauge |
1906/25 | 140×37 | 0-25 | 175×65×13 | 2.5 | H &μm | 1 |
| 1906/50 | 140×37 | 0-50 | 175×65×13 | 5 | H &μm | 1 | |
| 1906/100 | 140×37 | 0-100 | 175×65×13 | 10 | H &μm | 1 | |
| Triple- Channel Grind Gauge |
1905 | 140×12.5 | 0-25/50/100 | 175×85×13 | 2.5/5/10 | μm | 3 |

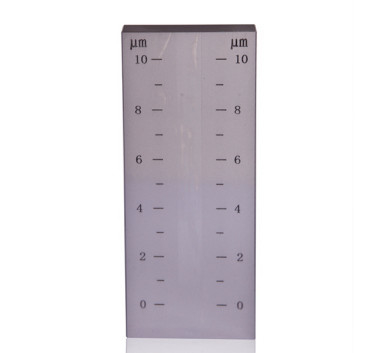

1903
Single-Channel Grind Gauge
1906
Wide Single Channel Grind Gauge

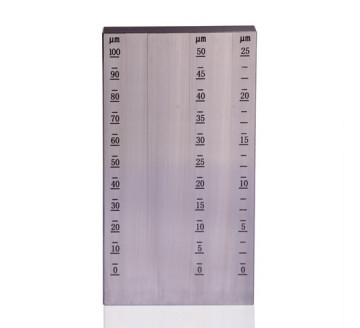

1905
Triple-Channel Grind Gauge
Order Information of Accessories

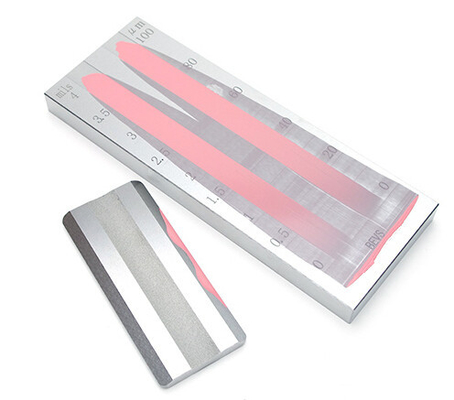

1907 Scraper For Fineness of Grind Gauge
