Professional Testing Equipments:Ultrasonic Flaw Detector
Product Details:
Payment & Shipping Terms:
|
| Material: | Cup Body-aluminum Alloy; Nozzle-stainless Steel | Volume: | 100 Ml |
|---|---|---|---|
| High Light: | digital thickness gauge,coating thickness meter |
||
Product Introduction:
It is designed according to ASTM D1200, D333 and D365 standards and widely used to measure the viscosity of paints, inks and etc.
Introduction:

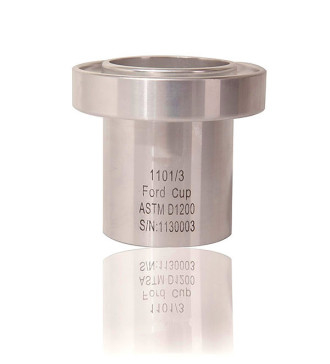

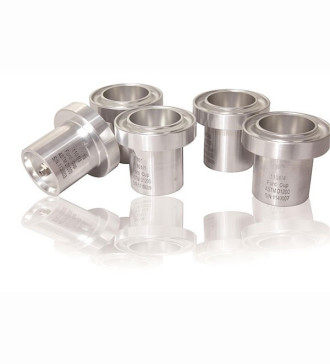

It is designed according to ASTM D1200, D333 and D365 standards and widely used to measure the viscosity of paints,inks, lacquers and other liquids.It is made of high quality aluminum with a stainless steel nozzle insert and the capacity is 100ml.
Evaluate the viscosity of the material by measuring the time of a certain amount specimen in the aluminum cup outflows from the stainless steel nozzle in the bottom.
Technical Specification:
◆Material: Cup body-aluminum alloy;
Nozzle-stainless steel
◆Volume: 100 ml
Order Information:
| Order No. | Orifice(mm) | Viscosity Range(cSt) | Flow Time(Sec) |
| 1101/1 | 2.1 | 10~35 | 55~100 |
| 1101/2 | 2.8 | 25~120 | 40~100 |
| 1101/3 | 3.4 | 49~220 | 30~100 |
| 1101/4 | 4.1 | 70~370 | 30~100 |
| 1101/5 | 5.8 | 200~1200 | 30~100 |
