|Resolution:||0.1℃||Probe Type:||K Type|
|Interval:||From 1 Second To 1 Hour||Interface:||USB|
|Batteries:||3×1.5AA Type||Battery Life:||1200 Hours Continuous Use Or 10000 Hours Stand-by|
coating thickness tester,
coating thickness meter

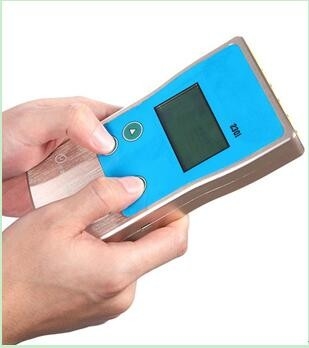

Oven Loggermaster is the latest generation of Oven Temperature Logger for robust comprehensive,intelligent and easy-to-use, which used to measure and store the temperature profiles of both the sample and the oven during the cure process.
Oven Loggermaster is the latest generation of Oven Temperature Logger for robust comprehensive,intelligent and easy-to-use, which used to measure and store the temperature profiles of both the sample and the oven during the cure process. The record data can be downloaded to the loggermaster software for a comprehensive evaluation of the oven conditions.
◆Probe type:K type
◆Interval:from 1 second to 1 hour
◆Batteries: 3×1.5AA type
◆Battery life: 1200 hours continuous use or 10000 hours stand-by
◆Size :85×105×30 mm
◆Measures up to 6 channels in one time
◆Long battery life
◆Large screen for numerical or graphical display of data

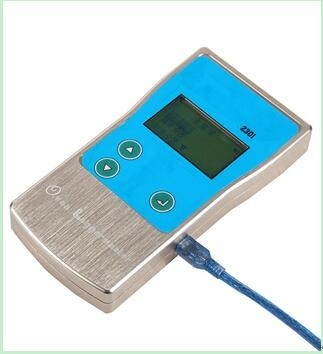

◆USB interface provides easy data transfer for evaluation
◆High quality thermocouple type K probes
◆Measure temperature both in horizontal and vertical as the component is passed through the cure process
◆Start and stop logging at a pre-set temperature
◆Memory stores up to 260,000 readings
Flexible Evaluation of Data:
◆Quick display - the logger display shows the maximum temperature and data percentage or graphic representation for each probe.

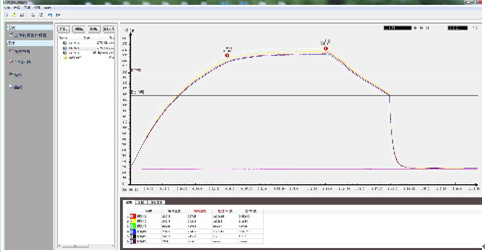

◆Extensive analysis - download the data to PC, comprehensive calculations and full customized reports are easily got as each system is supplied with the powerful analysis software.

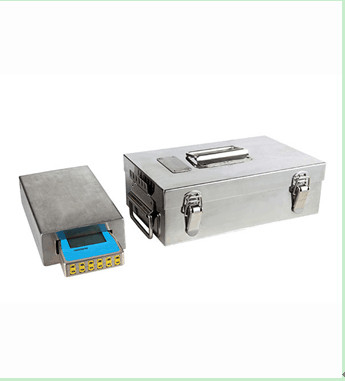

Thermal Insulation Systems:
◆All 2301 recorder is equipped with a high quality thermal insulation system.
◆The insulation box is equipped with advanced stainless steel shell,which can be customized according to the demand for other purposes.
◆Advanced heat absorber
A wide range of K-Type temperature probes is available with 1.5m , 3m or 6m cable length.
Order Information of Probe:
|Order No.||Cable length(m)||Cable type||Application||Probe type||Max.T.(℃)|
|PL8019/20||1.5/3.0||ss braided lead||surface||magnetic||480|
|PL8021/22||1.5/3.0||ss braided lead||surface||clamp||480|
|PL8023/24||1.5/3.0||ss braided lead||universal||ring Ø6mm||480|
|PL8025/26/27||1.5/3.0 /6.0||ss braided lead||air||clamp||480|
|PL8028/29/30||1.5/3.0/6.0||Inconel bendable HT||universal||ring Ø6mm||1000|
2301 Oven Loggermaster
|300℃ Thermal Insulation System||500℃ Thermal Insulation System|
2302 Insulation Box
(Insulation Gasket Included)
2303 Insulation Box
(Insulation Gasket Included)
|2302/3 Heat Absorber||2303/3 Heat Absorber|
|2302/6 Insulation Gasket||2303/6 Insulation Gasket|
