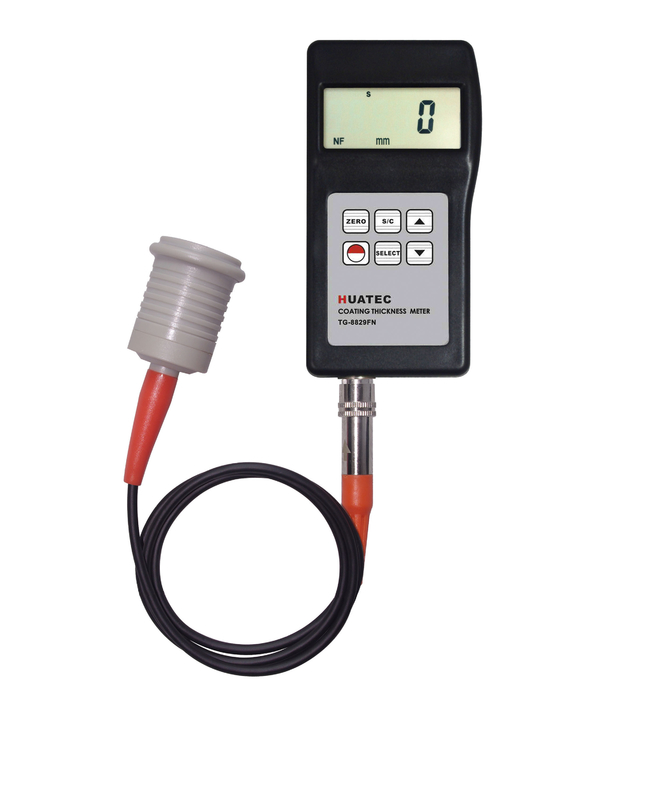

TG8829F 12 mm / 12000micron Coating Thickness Gauge

Name: TG8829F 12 mm / 12000micron Coating Thickness Gauge
Brand: HUATEC
SKU: TG8829F
Price: 1 USD
Availability: InStock
Rating: 4.7 (137 reviews)
ISBN: 13773365

Large Image : TG8829F 12 mm / 12000micron Coating Thickness Gauge

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TG8829F

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Measuring Range:	0-12000um	Resolution:	0.1/1
Accuracy:	±1-3%n Or ±2.5um	Battery Indicator:	Low Battery Indicator
Unit:	Metric / Imperial: Convertible	Power Off:	Auto Power Off
Min. Sample Thickness:	0.3mm
High Light:	oating thickness tester , digital thickness gauge

12 mm Coating Thickness Gauge TG8829F for non conductive coating layers

Description:

With separate probe(s)
Function: TG-8829F (ferrous substrate)

Operating principle: magnetic induction

Measuring range:0-12000um/

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 30mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

Standard Delivery of TG8829F:
Main unit(1250um)                        1
F type probe                                    1
F calibration base set                    1
Calibration foil set                         1set (4 foils)
Carrying case                                   1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C

Customized testing range
