Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Accuracy: | ±[(1~2)%H+1] Um |
|---|---|---|---|
| Display Value: | Display Both Thickness And Weight Measurements Directly | Interface: | Mini-USB Interface For Communication |
| Online Testing: | Support Online Measurement | Testing Range: | 0 ~ 1500 Um |
| Eddy Current And Magnetic Induction: | Non-magnetic Coating On Magnetic Metal Substrate,Non-conductive Coating On Non-magnetic Metal Substrate | Density Range: | 0.01 ~ 99.99 G/cm3 |
| Testing Times: | 3 Times Per Second | Display: | FSTN LCD Display With Backlight |
| Display Content: | Coating Thickness Value, Coating Weight Value, Density Value, Time, Stability, Battery, Measuring Mode, Etc | ||
| High Light: | digital thickness gauge,coating thickness meter |
||

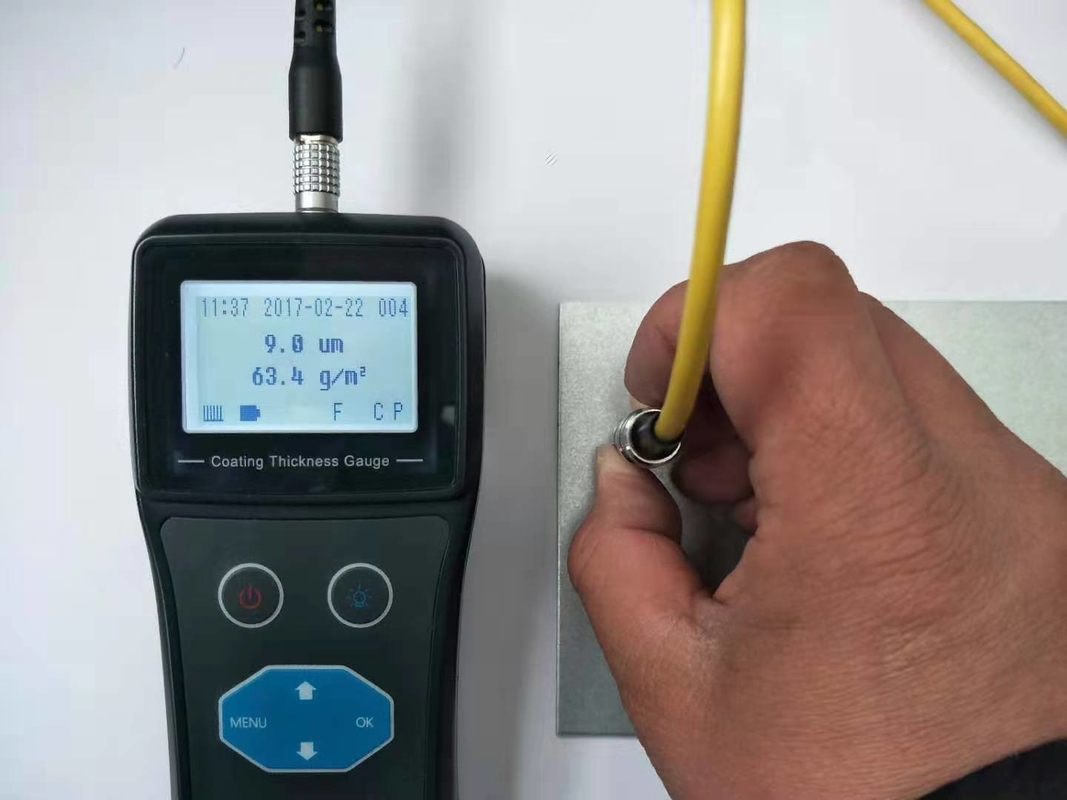

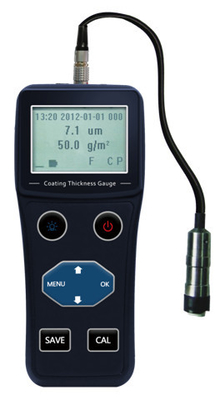

Paint Coating Thickness Gauge Weight Measurement Paint Thickness Meter
TG-6101 is an enhanced portable coating thickness gauge which is designed for non-destructive, fast and precise coating thickness and weight measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Features:
Main Functions:
Technical Parameters
| Probe Type | F (Magnetic) | N (Non-magnetic) |
| Usage | Non-magnetic coating on magnetic metal substrate | Non-conductive coating on non-magnetic metal substrate |
| Measure Range | 0 ~ 1500 um |
0 ~ 1500 um 0 ~ 40 um, for Chromium on Copper |
| Min. Radius of Curvature | Bulge 1.5 mm | Bulge 3 mm |
| Min. Radius of Area | Φ7 mm | Φ5 mm |
| Critical Thickness of Plate | 0.5 mm | 0.3 mm |
| Accuracy | Zero / One-Point Calibration | ±(2%H+1) um |
| Two-Point Calibration | ±[(1~2)%H+1] um | |
| Basic Calibration | ±(1%H+1) um | |
| Resolution | 0.1 g/m2,0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um) | |
| Density Range | 0.01 ~ 99.99 g/cm3 | |
| Measuring Period | 3 times per second | |
| Calibration Mode | Zero, One-Point, Two-Point and Basic Calibration | |
| Measuring Mode | Single point, scan mode, average mode, differential mode, alarm mode | |
| Display | English / Chinese selectable, FSTN LCD Display with backlight | |
| Display Content | Coating Thickness Value, Coating Weight value, Density Value, Time, Stability, Battery, Measuring Mode, etc. | |
| Storage | 500 measurements, including time, probe type, density, etc. | |
| Communication | Mini-USB interface, virtual serial port protocol, support online measurement | |
| Optional portable thermal printers | ||
| Power Supply | 3 * AAA alkaline batteries for 100 hours usage (close backlight) | |
| Power off | Timeout power off, and low battery power off | |
| Temperature | Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C | |
| Size | 150mm * 70mm * 30mm | |
| Material | ABS and PC alloy | |
| Weight | 180g | |
