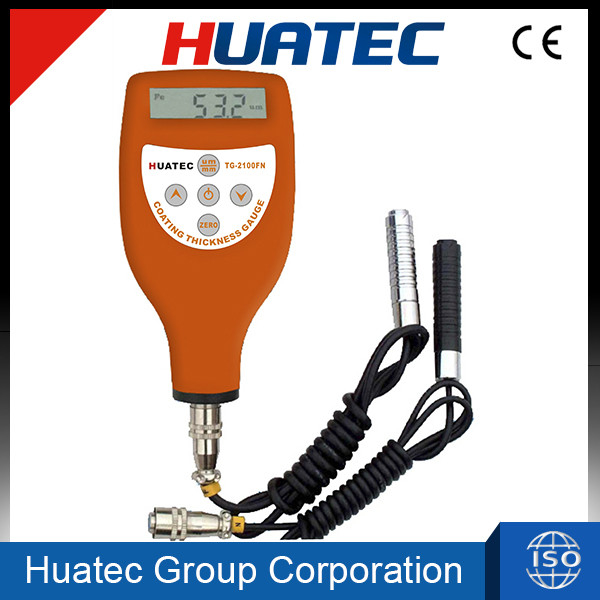

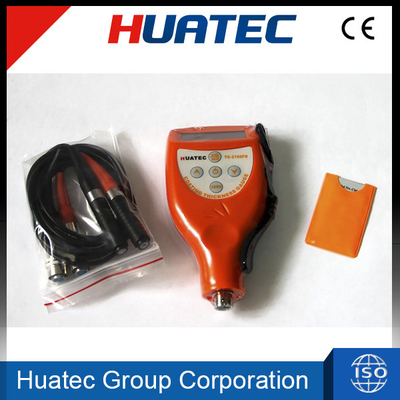

Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron

Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron
Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron

Large Image :  Accurate Coating Thickness Gauge Customized TG-2100 5000 Micron

Product Details:

Place of Origin: Beijing
Brand Name: Huatec
Certification: CE, GOST
Model Number: TG-2100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package
Delivery Time: 3-5 working days
Payment Terms: Paypal / Western Union / TT
Supply Ability: 1000
Detailed Product Description
Coating: Plating Substrate: Steel
Type: Coating Production Line



Detailed Product Description

Operating Principle: Magnetic Induction/eddy Current (F/NF) Measuring Range: 0-5000um/0-50mil
Resolution;: 0.1/1 Accuracy:: ±1-3%n Or ±2.5um
Min. Measuring Area:: 6mm Min. Sample Thickness:: 0.3mm
Battery Indicator:: Low Battery Indicator Metric/ Imperial:: Convertible



Accurate Coating Thickness Gauge Customized TG-2100FN 5000 Micron





Description:

With separate probe(s)
Function: TG-2100F (ferrous substrate) TG-2100N (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-5000um/0-50mil

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-2100N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

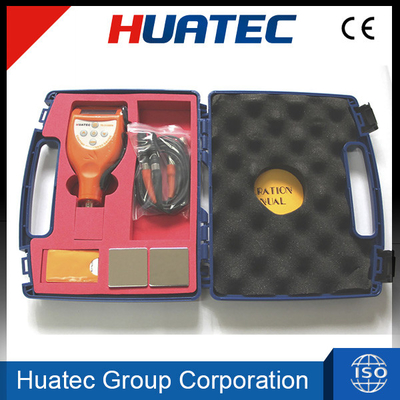

Standard Delivery of TG2100FN:
Main unit (5000um)                 1
F type probe                           1
N type probe                           1
F calibration base set             1
N calibration base set             1
Calibration foil set                   1set (4 foils)
Carrying case                         1
Instruction manual                  1

Optional Accessories
Cable and software for RS-232C/ USB

Customized testing range

Bluetooth

90 degrees angle probe

--------------------------------------------------------------------------------------------------------------
