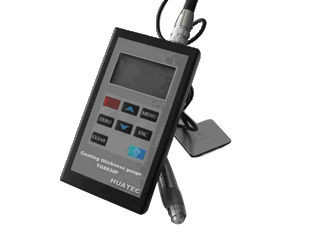

Magnetism and backset measuring thickness method Coating Thickness Gauge TG8831FN

Magnetism and backset measuring thickness method Coating Thickness Gauge TG8831FN
Magnetism and backset measuring thickness method Coating Thickness Gauge TG8831FN

Large Image :  Magnetism and backset measuring thickness method Coating Thickness Gauge TG8831FN

Product Details:

Place of Origin: Beijing
Brand Name: Huatec
Certification: CE, GOST
Model Number: TG-8831FN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton Package
Delivery Time: 3-5 working days
Payment Terms: Paypal / Western Union / TT
Supply Ability: 1000
Detailed Product Description


Detailed Product Description



TG8831FN digital coating thickness gauge is using the magnetism and backset measuring thickness method .It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) and non-magnetism metal substrate (such as copper, aluminum, zinc, tin and etc) and non-transmitting electricity cover layer (such as enamel, rubber, oil paint, plastic and etc). This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.

Features

  • Precise measurements (2%+1)/(1%+1)
  • Quick measuring response and rapid measuring speed
  • Design of two independent parts , better applicability, stable measurement results
  • Strong data processing and analysis :5 types of Statistic value and histogram

Technical Specification

Measuring range

F400:0~400μm, N400:0~400μm, F1:0~1250μm, F1/90:0~1250μm,

N1:0~1250μm, F10:0~10000μm, CN02:10~200μm,

Measuring accuracy

1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)

Calibration

1 point calibration /2 point calibration /basic calibration

Display resolution

0.1um (0~99.9um) / 1um (Over 100um)

Weight

250g(including battery package )

Operation environment

Temperature: 0℃~50℃ humidity: 20%RH~90%RH

Operation mode

Direct testing mode and block statistics mode

Measuring mode

continuous/single

Shutdown mode

manual/automatic

Operation alarm

Ring music to alarm mistake

Signal Dealing

Threshold

Limits setting and automatically alarm measured values out of limit

Data analysis

Analyzing a batch of measuring values via histogram

Statistic function

Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum

Data Merory

Thickness values

500 measuring data

Delete

Single doubtful data / All data of one group

Power supply

Battery

9V Nickel-hydride/alkaline batteries

Power battery inspection

low voltage indication

Standard delivery

Main unit

1

Integrated probe((N 1 or F1 )

1

Calibration foil set

4

Calibration base set

1

9V alkaline battery

1

Instruction manual

1

Optional accessories

probe

F400, N400, F1/90, F10, CN02

--------------------------------------------------------------------------------------------------------------
